NO |
CODE |
DESCRIPTION |
NOTE |
EA |
ADDITIONнн |
|
|
|

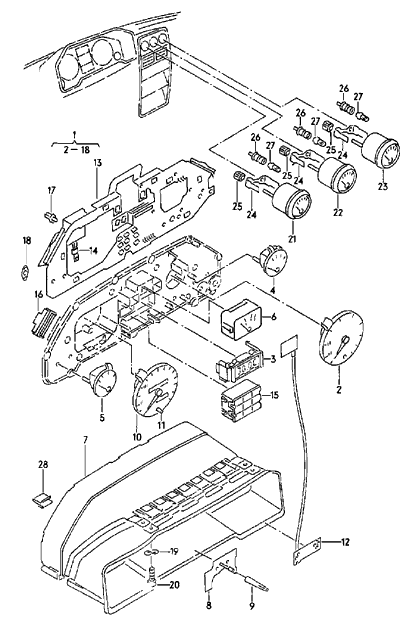

INSTRUMENT
HOUSING, FUEL AND |
|
|
SPORTQUATTRO |
|
|
|
TEMPERATURE
GAUGE, PRINTED |
|
|
|
|
|
|
CIRCUIT FOIL,
REVOLUTION |
|
|
|
|
|
|
COUNTER, CLOCK |
|
|
|
|
1 |
859
919 033 |
COMBI
INSTRUMENT |
300 KMH |
1 |
|
|
|
05/84-07/87 01C |
SATIN BLACK |
|
|
|
|
2 |
859
919 253 |
REVOLUTION
COUNTER |
8000 1/MIN |
1 |
|
|
3 |
859
919 203 |
DIGITAL CLOCK |
|
1 |
|
|
4 |
859
919 031 |
FUEL GAUGE |
|
1 |
|
|
5 |
859
919 531 |
VOLTMETER |
|
1 |
|
|
6 |
859
919 705 |
CHARGE PRESSURE
GAUGE |
|
1 |
|
|
7 |
859
919 054 |
INSTRUMENT
HOUSING |
|
1 |
|
|
8 |
859
919 093 |
RHEOSTAT FOR
INSTRUMENT |
|
1 |
|
|
|
|
LIGHTING |
|
|
|
|
9 |
447
919 069 |
KNOB FOR SWITCH |
|
1 |
|
|
10 |
859
957 031 |
SPEEDOMETER
WITH KILOMETRE |
|
1 |
|
|
|
|
TRIP RECORDER |
|
|
|
|
|
|
SEE
ILLUSTRATION: |
116 |
|
|
|
11 |
447 919 069 A |
SETTING KNOB
FOR |
|
1 |
|
|
|
|
TRIP RECORDER, |
|
|
|
|
|
|
KM OR MILES |
|
|
|
|
12 |
859
919 064 |
PRINTED CIRCUIT |
|
1 |
|
|
|
|
DIGITAL CLOCK |
|
|
|
|
13 |
859
919 059 |
PRINTED CIRCUIT
FOIL |
|
1 |
|
|
14 |
171
919 803 |
VOLTAGE
REGULATOR |
|
1 |
|
|
15 |
859
953 157 |
LIGHT CONDUCTOR |
|
1 |
|
|
|
|
WARNING LIGHTS |
|
|
|
|
16 |
321
919 060 |
LUG |
14 POINT |
2 |
|
|
17 |
431
919 040 |
BULB WITH BLACK |
12V1,2W |
X |
|
|
|
|
BASE |
|
|
|
|
-17 |
859
919 039 |
SOCKET FOR BULB |
|
X |
|
|
18 |
437
919 745 |
INSULATING
PLATE FOR |
|
1 |
|
|
|
|
OIL TEMPERATURE
GAUGE |
|
|
|
|
19 |
N 012 224 3 |
SPRING WASHER |
B4X9X0,5 |
2 |
|
|
20 |
N 013 958 7 |
TAPPING SCREW,
FILL. HD. |
B3,5X13 |
2 |
|
|
21 |
859
919 541 |
OIL TEMPERATURE
GAUGE |
|
1 |
|
|
22 |
859 919 511 A |
TEMPERATURE
GAUGE |
|
1 |
|
|
23 |
859
919 551 |
OIL PRESSURE
GAUGE |
|
1 |
|
|
24 |
321 919 115 D |
RETAINER |
49MM |
3 |
|
|
25 |
411
957 117 |
KNURLED NUT |
M4 |
6 |
|
|
26 |
437
919 039 |
SOCKET FOR BULB |
|
3 |
|
|
27 |
N 017 751 2 |
BULB |
W5/1,2-12V1,2W |
3 |
|
|
28 |
443
919 047 |
CLAMP |
|
2 |
|
|
|
|
|
|
|
|
