NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

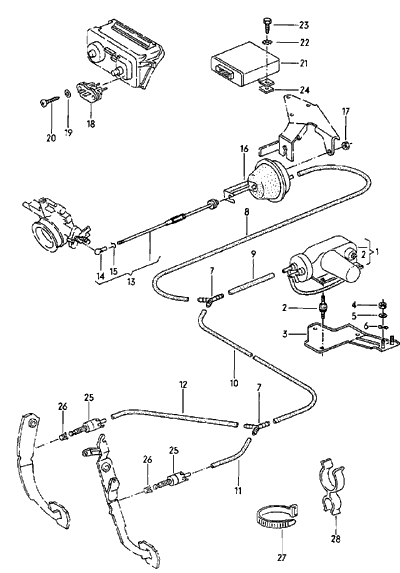

CRUISE CONTROL SYSTEM | WR,WX,GV,MB | ||||||
RR | |||||||
1 | 811 907 325 | VACUUM PUMP | 1 | ||||
2 | 431 907 349 | BUFFER | 3 | ||||
3 | 857 907 341 | BRACKET | |||||
F >> 85-E-901 400* | 1 | ||||||
-3 | 857 907 341 A | BRACKET | |||||
F 85-F-900 001>>* | 1 | ||||||
4 | N 011 006 24 | HEX. NUT | M6 | 2 | |||
5 | N 012 099 3 | LOCK WASHER | V6,4 | 2 | |||
6 | N 012 226 5 | SPRING WASHER | B6 | 2 | |||
7 | 58 127 561 | Y-PIECE | 2 | ||||
- | N 018 046 3 | HOSE IN COILS OF 5M | 5X2,5 | * | |||
'ORDER UNIT 5' | |||||||
8 | SHORTEN TO: | 660MM | 1 | ||||
9 | SHORTEN TO: | 60MM | 1 | ||||
10 | SHORTEN TO: | 730MM | 1 | ||||
11 | SHORTEN TO: | 40MM | 1 | ||||
12 | SHORTEN TO: | 180MM | 1 | ||||
13 | 431 907 415 B | CONNECTING ROD | 1 | WR,WX,GV,MB | |||
-13 | 034 907 415 A | CONNECTING ROD | 1 | RR | |||
14 | N 015 525 1 | BALL SOCKET | BK8 | 1 | |||
15 | N 904 314 01 | SECURING CLIP | S8 | 1 | |||
16 | 811 907 327 B | THROTTLE CONTROL ELEMENT | 1 | ||||
17 | N 011 008 8 | HEX. NUT | M8 | 1 | |||
18 | 811 907 345 | INDUCTIVE SENDER FOR | |||||
CRUISE CONTROL SYSTEM | |||||||
F >> 85-E-901 500* | 1 | ||||||
-18 | 443 907 345 B | INDUCTIVE SENDER FOR | |||||
CRUISE CONTROL SYSTEM | |||||||
F 85-F-900 001>> | 1 | ||||||
-18 | 443 907 345 A | HALL SENDER | 1 | "CH" :S704 | |||
19 | N 012 223 3 | SPRING WASHER | A3X6X0,4 | 2 | |||
20 | N 014 111 2 | FILLISTER HD. SCREW | AM3X12Z | 2 | |||
21 | 443 907 305 | CONTROL UNIT FOR CRUISE | 1 | ||||
CONTROL SYSTEM | |||||||
- | 34 721 396 | BRACKET F.THROTTLE CONTR.ELEM. | 1 | RR | |||
22 | N 012 130 1 | SHAKE-PROOF WASHER | A5,3 | ||||
F >> 85-C-902 000 | 2 | ||||||
23 | N 013 884 5 | TAPPING SCREW,HEX.HD. | 4,8X13 | ||||
F >> 85-C-902 000 | 2 | ||||||
-23 | N 013 964 4 | TAPPING SCREW, FILL. HD. | B4,2X16 | ||||
F 85-D-900 001>> 85-E-900 760 | 2 | ||||||
-23 | N 013 964 4 | TAPPING SCREW, FILL. HD. | B4,2X16 | ||||
F 85-E-900 761>> | 2 | ||||||
ALSO USE: | N 011 522 7 | 2 | |||||
- | N 011 522 7 | WASHER | A4,3X9X0,5 | 2 | |||
24 | N 015 430 1 | SPEED NUT | B4,2X24,8X11,3 | ||||
F 85-D-900 001>> | 2 | ||||||
25 | 811 907 343 B | VENTILATION VALVE | 2 | ||||
26 | 431 721 283 B | CLIP | 13 | 2 | |||
27 | N 900 603 01 | CABLE BINDER | 6,5X175 | 3 | |||
-27 | N 020 902 2 | CABLE BINDER | 6X246 | 3 | |||
28 | 443 957 818 C | CABLE BINDER | 7X273-8 | 1 |
