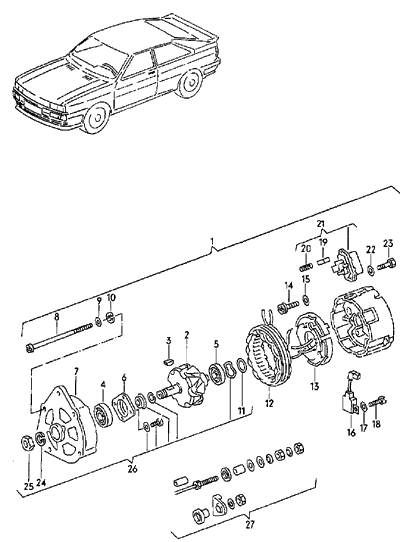

NO CODE DESCRIPTION NOTE EA ADDITIONнн
    ALTERNATOR     WR,GV,WX,MB
          KW
1 >068 903 017 E ALTERNATOR 90A BOSCH 1 QUATTRO
-1 ~068 903 017 EX ALTERNATOR 90 A BOSCH 1 QUATTRO
-1 ~068 903 017 EX ALTERNATOR 90A BOSCH 1 QUATTRO
-1 068 903 018 B ALTERNATOR 90A BOSCH 1 QUATTRO
-1 ~026 903 017 BX ALTERNATOR 90A BOSCH 1 QUATTRO
-1 ~034 903 017 X ALTERNATOR 90A BOSCH 1 QUATTRO
-1 035 903 016 B ALTERNATOR 90A BOSCH 1 SPORTQUATTRO
- 68 998 329 1 SET OF ATTACHMENT PARTS FOR   1
    ALTERNATOR-LOOM
2 035 903 213 D CLAW-POLE ROTOR   1
    FOR ALTERNATOR: 1
    ALSO USE: N 041 181 7 1
-2 074 903 213 B CLAW-POLE ROTOR   1
    FOR ALTERNATOR: 3,7
- N 041 181 7 HEX. NUT M16X1,5 1
3 N 012 708 2 WOODRUFF KEY 4X5 1
4 021 903 221 D BALL BEARING   1
    FOR ALTERNATOR: 1,2,3,5,7
-5 035 903 221 D BALL BEARING   1
    FOR ALTERNATOR: 1,2,3
-5 054 903 221 A BALL BEARING   1
    FOR ALTERNATOR: 7
6 021 903 543 A RETAINING PLATE   1
    FOR ALTERNATOR: 1
-6 034 903 543 A RETAINING PLATE   1
    FOR ALTERNATOR: 2,3,5,7
7 63 903 537 END PLATE   1
    FOR ALTERNATOR: 1
-7 35 903 537 END PLATE   1
    FOR ALTERNATOR: 5
-7 049 903 537 D END PLATE   1
    FOR ALTERNATOR: 3,7
8 N 010 655 1 SCREW, CHEESE HD. M5X55 4
    FOR ALTERNATOR: 1
-8 69 903 555 FILLISTER HD. SCREW   4
    FOR ALTERNATOR: 2
-8 049 903 555 D FILLISTER HD. SCREW M5X111 4
    FOR ALTERNATOR: 3,7
9 N 011 523 18 WASHER A5,3X10X1 4
    FOR ALTERNATOR: 1,7
-9 N 011 556 2 WASHER 5,3X9,5X1 4
    FOR ALTERNATOR: 3
10 N 012 005 3 LOCK RING B5 X
    FOR ALTERNATOR: 1
11 63 903 509 O-RING   1
    FOR ALTERNATOR: 1,2,3,5
- 49 903 223 INTERMEDIATE RING   1
    FOR ALTERNATOR: 7
12 049 903 351 B STATOR WINDING   1
    FOR ALTERNATOR: 1,2,3,5,7
13 035 903 359 C DIODE PLATE   1
    FOR ALTERNATOR: 1,5
-13 068 903 359 A DIODE PLATE   1
    FOR ALTERNATOR: 3
-13 26 903 359 DIODE PLATE   1
    FOR ALTERNATOR: 7
14 049 903 555 A FILL. HD. SCREW (COMBI.)   1
    FOR ALTERNATOR: 1,5,7
-14 N 014 125 1 FILLISTER HD. SCREW AM4X18 2
    FOR ALTERNATOR: 2,5
15 N 012 221 3 SPRING WASHER A4X8X0,5 2
      FOR ALTERNATOR: 2,5
16 63 903 291 SUPPRESSION CONDENSER   1
    FOR ALTERNATOR: 1,2,5
-16 56 903 291 SUPPRESSION CONDENSER   1
    FOR ALTERNATOR: 3,7
17 N 012 226 5 SPRING WASHER B6 1
    FOR ALTERNATOR: 1,2,5
-17 N 012 225 3 SPRING WASHER B5X11X0,5 1
    FOR ALTERNATOR: 7
18 N 010 710 8 SCREW, CHEESE HD. AM6X10 1
    FOR ALTERNATOR: 1,2,5
-18 N 010 704 2 SCREW, CHEESE HD. AM5X10 1
    FOR ALTERNATOR: 3,7
19 059 903 515 B 1 SET OF CARBON BRUSHES   1
    FOR ALTERNATOR: 1,5
-19 049 903 515 C 1 SET OF CARBON BRUSHES   1
    FOR ALTERNATOR: 3,5,7
20 59 903 519 PRESSURE SPRING   2
    FOR ALTERNATOR: 1
21 070 903 803 A VOLTAGE REGULATOR   1
    FOR ALTERNATOR: 1
-21 068 903 803 D VOLTAGE REGULATOR 14,5V BOSCH 1
    FOR ALTERNATOR: 2,3,5,7
22 N 012 221 3 SPRING WASHER A4X8X0,5 2
    FOR ALTERNATOR: 1,3
-22 N 011 522 7 WASHER A4,3X9X0,5 2
    FOR ALTERNATOR: 2,3
-22 N 012 222 4 SPRING WASHER A5X10X0,5 1
    FOR ALTERNATOR: 3
23 N 014 125 1 FILLISTER HD. SCREW AM4X18 2
    FOR ALTERNATOR: 1,3,7
-23 049 903 555 A FILL. HD. SCREW (COMBI.)   3
    FOR ALTERNATOR: 2,3
24 N 012 044 2 LOCK RING A14 1
    FOR ALTERNATOR: 1,2
25 N 011 113 5 HEX. NUT BM14X1,5 1
    FOR ALTERNATOR: 1,2,7
26 028 903 320 B REPAIR KIT FOR   1
    ALTERNATOR 1,2,3,7
27 068 903 791 D 1 SET OF CONNECTING PARTS FOR B+ / D+ 1
    TERMINAL
    FOR ALTERNATOR: 1,2
-27 068 903 791 E 1 SET OF CONNECTING PARTS FOR B+ / D+ 1
    TERMINAL
    FOR ALTERNATOR: 3,7
- N 022 154 1 HEX. NUT, SELF-LOCKING M5 1 SPORTQUATTRO
