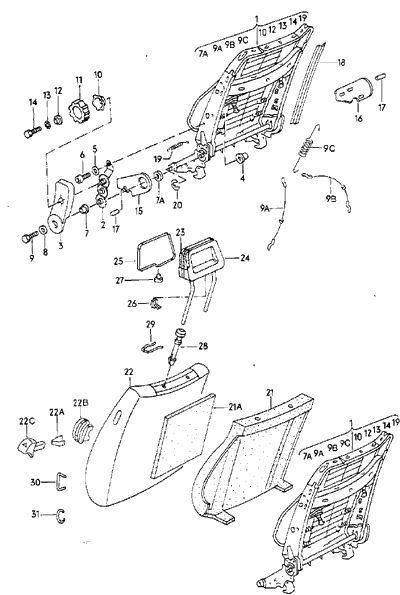

BACKREST |
FRONT |
|
|
|
-1 |
857
881 045 |
BACKREST FRAME |
LEFT |
|
|
|
|
|
F >>
85-B-902 000 |
|
1 |
|
|
1 |
171 881 046 BT |
BACKREST FRAME |
RIGHT |
|
|
|
|
|
F >>
85-B-902 000 |
|
1 |
|
|
-1 |
855
881 049 |
BACKREST FRAME |
LEFT |
|
|
|
|
|
F 85-C-900
001>> 85-E-902 000 |
|
1 |
|
|
-1 |
171 881 049 F |
BACKREST FRAME |
ECHTS |
|
|
|
|
|
F 85-C-900
001>> 85-E-902 000 |
|
1 |
|
|
-1 |
811 881 049 D |
BACKREST FRAME |
LEFT |
|
|
|
|
|
F 85-F-900
001>> |
|
1 |
|
|
|
|
SEE PARTS
BULLETIN: |
8/133 |
|
|
|
|
|
AS REQUIRED
USE: |
191
881 477 |
1 |
|
|
|
|
|
(LX6) |
|
|
|
|
|
|
191
881 478 |
1 |
|
|
|
|
|
(LX6) |
|
|
|
|
|
|
191
881 479 |
1 |
|
|
|
|
|
(LX6) |
|
|
|
|
|
|
191
881 480 |
1 |
|
|
|
|
|
(LX6) |
|
|
|
|
|
|
191
881 671 |
1 |
|
|
|
|
|
(01C) |
|
|
|
|
|
|
N 010 785 1 |
X |
|
|
-1 |
811 881 049 D |
BACKREST FRAME |
RIGHT |
|
|
|
|
|
F 85-F-900
001>> |
|
1 |
|
|
|
|
SEE PARTS
BULLETIN: |
8/133 |
|
|
|
|
|
AS REQUIRED
USE: |
191
881 477 |
1 |
|
|
|
|
|
(LX6) |
|
|
|
|
|
|
191
881 478 |
1 |
|
|
|
|
|
(LX6) |
|
|
|
|
|
|
191
881 479 |
1 |
|
|
|
|
|
(LX6) |
|
|
|
|
|
|
191
881 480 |
1 |
|
|
|
|
|
(LX6) |
|
|
|
|
|
|
191
881 671 |
1 |
|
|
|
|
|
(01C) |
|
|
|
|
|
|
N 010 785 1 |
X |
|
|
2 |
853
881 491 |
INTERMEDIATE
DRIVE |
LEFT |
|
|
|
|
|
F 85-E-900
001>> 85-E-901 500* |
|
1 |
|
|
|
|
SEE PARTS
BULLETIN: |
8/133 |
|
|
|
- |
191
881 479 |
TRIM WITH HOLE |
LEFT |
1 |
|
|
|
07/80-07/91 LX6 |
SATIN BLACK |
|
|
|
|
- |
191
881 480 |
TRIM WITH HOLE |
RIGHT |
1 |
|
|
|
07/80-07/91 LX6 |
SATIN BLACK |
|
|
|
|
- |
191
881 671 |
ROTARY KNOB |
|
|
|
|
|
07/80-07/91 01C |
SATIN BLACK |
|
|
|
|
- |
N 010 785 1 |
FILLISTER HD.
SCREW |
M4X12 |
X |
|
|
-2 |
857
881 491 |
INTERMEDIATE
DRIVE |
LEFT |
|
|
|
|
|
F 85-F-900
001>> |
SCHMITZ |
1 |
|
|
|
|
SEE PARTS
BULLETIN: |
8/133 |
|
|
|
-2 |
857 881 491 A |
INTERMEDIATE
DRIVE |
LEFT |
|
|
|
|
|
F 85-F-900
001>> |
KEIPER |
1 |
|
|
|
|
SEE PARTS
BULLETIN: |
8/133 |
|
|
|
-2 |
853
881 492 |
INTERMEDIATE
DRIVE |
RIGHT |
|
|
|
|
|
F 85-E-900
001>> 85-E-901 500* |
|
1 |
|
|
|
|
SEE PARTS
BULLETIN: |
8/133 |
|
|
|
-2 |
857
881 492 |
INTERMEDIATE
DRIVE |
RIGHT |
|
|
|
|
|
F 85-F-900
001>> |
SCHMITZ |
1 |
|
|
|
|
SEE PARTS
BULLETIN: |
8/133 |
|
|
|
-2 |
857 881 492 A |
INTERMEDIATE
DRIVE |
RIGHT |
|
|
|
|
|
F 85-F-900
001>> |
KEIPER |
1 |
|
|
|
|
SEE PARTS
BULLETIN: |
8/133 |
|
|
|
-3 |
857
881 971 |
CAP |
LEFT |
1 |
|
|
|
08/84-07/91 01Z |
DARK BROWN
(BROWN) |
|
|
|
|
|
08/89-07/91 01C |
SATIN BLACK |
-ZV |
|
|
|
-3 |
443 881 463 A |
CAP |
LEFT |
1 |
|
|
|
07/80-07/91 01Z |
DARK BROWN
(BROWN) |
|
|
|
|
|
08/89-07/91 01C |
SATIN BLACK |
-ZV |
|
|
|
-3 |
857
881 972 |
CAP |
RIGHT |
1 |
|
|
|
08/84-07/91 01Z |
DARK BROWN
(BROWN) |
|
|
|
|
|
08/89-07/91 01C |
SATIN BLACK |
-ZV |
|
|
|
-3 |
443 881 464 A |
CAP |
RIGHT |
1 |
|
|
|
07/80-07/91 01Z |
DARK BROWN
(BROWN) |
|
|
|
|
|
08/89-07/91 01C |
SATIN BLACK |
-ZV |
|
|
|
4 |
N 030 400 1 |
RIVETTED CAP
NUT |
EM6 |
2 |
|
|
5 |
N 011 524 23 |
WASHER |
A6,4X12,5X1,6 |
2 |
|
|
6 |
N 014 703 5 |
BOLT, WITH HEX.
SOCKET |
M6X18 |
1 |
|
|
|
|
HD. |
|
|
|
|
7 |
853 881 289 A |
SPACER SLEEVE |
|
|
|
|
|
|
F >>
85-E-901 500 |
|
2 |
|
|
-7 |
857
881 289 |
SPACER BUSH |
|
|
|
|
|
|
F 85-F-900
001>> |
|
2 |
|
|
7A |
191
881 493 |
SPACER RING |
|
2 |
|
|
8 |
N 011 666 15 |
WASHER |
6,4X18X1,6 |
|
|
|
|
|
F >>
85-E-901 500 |
|
2 |
|
|
-8 |
N 011 665 3 |
WASHER |
5,3X15X1,6 |
|
|
|
|
|
F 85-F-900
001>> |
|
2 |
|
|
8A |
N 902 755 01 |
WASHER |
3,7X18X1 |
|
|
|
|
|
F 85-F-900
001>> |
|
2 |
|
|
9 |
N 010 216 12 |
SCREW,
HEXAGONAL HEAD |
M6X18 |
|
|
|
|
|
F >>
85-E-901 500 |
|
2 |
|
|
9 |
N 014 133 5 |
FILLISTER HD.
SCREW |
M5X12 |
|
|
|
|
|
F85-F-900001 |
|
2 |
|
|
9A |
171 881 595 A |
BOWDEN CABLE |
342MM |
|
|
|
|
|
F >>
85-B-901 000 |
OUTER |
2 |
|
|
(9A) |
171 881 595 C |
BOWDEN CABLE |
363MM |
|
|
|
|
|
F 85-C-900
001>> 85-E-901 100* |
OUTER |
2 |
|
|
(9A) |
191
881 595 |
BOWDEN CABLE |
370MM |
|
|
|
|
|
F 85-E-901
101>>* |
OUTER |
2 |
|
|
9B |
171 881 596 C |
BOWDEN CABLE |
580MM |
|
|
|
|
|
F >>
85-B-901 000 |
OUTER |
2 |
|
|
(9B) |
171 881 596 D |
BOWDEN CABLE |
765MM |
|
|
|
|
|
F 85-C-900
001>> 85-E-901 100* |
INNER |
2 |
|
|
(9B) |
191 881 596 A |
BOWDEN CABLE |
689MM |
|
|
|
|
|
F 85-E-901
101>>* |
INNER |
2 |
|
|
9C |
311
881 619 |
TENSION SPRING |
|
|
|
|
|
|
F >>
85-B-901 207 |
|
2 |
|
|
(9C) |
171
881 619 |
TENSION SPRING |
|
|
|
|
|
|
F 85-B-901
208>> |
|
2 |
|
|
- |
823 881 621 A |
GUIDE |
|
1 |
|
|
10 |
171
881 687 |
RETAINING PLATE
F. ROTARY KNOB |
|
2 |
|
|
- |
171
881 493 |
SPACER RING |
|
2 |
|
|
11 |
171
881 671 |
ROTARY KNOB |
|
|
|
|
|
|
F >>
85-D-902 500 |
|
2 |
|
|
|
07/80-07/91 041 |
BLACK |
|
|
|
|
-11 |
437
881 671 |
ROTARY KNOB |
|
|
|
|
|
|
F 85-E-900
001>> |
|
2 |
|
|
|
08/83-07/91 01C |
SATIN BLACK |
|
|
|
|
12 |
171
881 499 |
DISHED WASHER |
|
2 |
|
|
13 |
N 012 127 2 |
SHAKE-PROOF
WASHER |
A6,4 |
4 |
|
|
14 |
N 010 208 5 |
SCREW,
HEXAGONAL HEAD |
M6X8 |
2 |
|
|
15 |
171 881 479 B |
TRIM WITH HOLE |
LEFT |
1 |
|
|
|
08/82-07/91 01C |
SATIN BLACK |
|
|
|
|
-15 |
171 881 480 B |
TRIM WITH HOLE |
RIGHT |
1 |
|
|
|
08/82-07/91 01Z |
DARK BROWN
(BROWN) |
|
|
|
|
-16 |
171 881 477 C |
TRIM WITHOUT
HOLE |
LEFT |
1 |
|
|
|
07/80-07/84 01Z |
DARK BROWN
(BROWN) |
|
|
|
|
-16 |
191
881 477 |
TRIM WITHOUT
HOLE |
LEFT |
1 |
|
|
|
08/84-07/91 01Z |
DARK BROWN
(BROWN) |
|
|
|
|
|
08/89-07/91 LX6 |
SATIN BLACK |
-ZV |
|
|
|
16 |
171 881 478 C |
TRIM WITHOUT
HOLE |
RIGHT |
1 |
|
|
|
07/80-07/84 01Z |
DARK BROWN
(BROWN) |
|
|
|
|
-16 |
191
881 478 |
TRIM WITHOUT
HOLE |
RIGHT |
1 |
|
|
|
08/84-07/91 01Z |
DARK BROWN
(BROWN) |
|
|
|
|
|
08/89-07/91 LX6 |
SATIN BLACK |
-ZV |
|
|
|
-17 |
171
881 500 |
DOWEL PIN |
|
3 |
|
|
|
08/89-07/91 01C |
SATIN BLACK |
|
|
|
|
17 |
171
881 500 |
DOWEL PIN |
|
3 |
|
|
|
08/82-07/91 01C |
SATIN BLACK |
|
|
|
|
18 |
321
881 713 |
PROTECTIVE
COVER |
|
6 |
|
|
19 |
171
881 497 |
TENSION SPRING |
|
4 |
|
|
20 |
N 900 527 02 |
LOCK WASHER |
8 |
4 |
|
|
21 |
171 881 775 AJ |
PADDING |
OUTER |
|
|
|
|
|
F >>
85-B-901 000 |
|
2 |
|
|
-21 |
811 881 775 A |
PADDING |
OUTER |
|
|
|
|
|
F 85-C-900
001>> |
|
2 |
|
|
-21 |
859
881 775 |
PADDING FOR
BACKREST |
|
2 |
SPORTQUATTRO |
|
21A |
811 881 777 A |
PADDING |
CENTER |
2 |
|
|
-22 |
857 881 801 C |
BACKREST COVER
(CLOTH) |
|
2 |
|
|
|
08/84-07/89 NQ3 |
GRAPHITE |
-ZN |
|
|
|
-22 |
857 881 801 D |
BACKREST COVER
(CLOTH) WITH |
|
2 |
|
|
|
|
HEATER ELEMENT |
|
|
|
|
|
08/85-07/89 NQ3 |
GRAPHITE |
-ZN |
|
|
|
-22 |
857 881 801 K |
BACKREST COVER
(CLOTH/LEATHER) |
|
2 |
|
|
|
|
WITH
EMBROIDERED INSCRIPTION |
'QUATTRO' |
|
|
|
|
08/89-07/91 ABZ |
GRANITE/GRAPHITE
(GREY) |
-ZV |
|
|
|
-22 |
813 881 801 K |
BACKREST COVER
(LEATHER) |
|
2 |
|
|
|
08/85-07/89 7AX |
GRAPHITE |
-YN |
|
|
|
-22 |
813 881 801 L |
BACKREST COVER
(LEATHER) WITH |
|
2 |
|
|
|
|
HEATER ELEMENT |
|
|
|
|
|
08/85-07/89 7AX |
GRAPHITE |
-YN |
|
|
|
-22 |
857 881 801 J |
BACKREST COVER
(LEATHER) |
|
2 |
|
|
|
08/89-07/91 5VV |
GRANITE/GRAPHITE
(GREY) |
-ZV |
|
|
|
22A |
311
881 247 |
CLIP |
|
2 |
|
|
22B |
371
881 607 |
TRIM |
|
2 |
QUATTRO |
|
|
09/84-07/91 01C |
SATIN BLACK |
|
|
|
|
22C |
113 881 633 E |
KNOB |
|
2 |
QUATTRO |
|
|
08/82-08/84 01Z |
DARK BROWN
(BROWN) |
|
|
|
|
|
09/84-07/91 01C |
SATIN BLACK |
|
|
|
|
23 |
437 881 903 B |
HEADREST,
DETACHABLE |
|
|
|
|
|
|
F >>
85-D-902 500 |
|
2 |
|
|
-23 |
857 881 903 C |
HEADREST,
DETACHABLE |
|
|
|
|
|
|
F 85-E-900
001>> 85-K-020 000* |
|
2 |
|
|
-23 |
857 881 903 D |
HEADREST,
DETACHABLE |
|
|
|
|
|
|
F 85-K-020
001>>* |
|
2 |
|
|
-24 |
893 881 921 D |
COVER FOR
HEADREST (LEATHER) |
|
2 |
|
|
|
08/85-07/89 3YN |
PLATINUM |
-TW |
|
|
|
|
09/84-07/89 7AX |
GRAPHITE |
-YN |
|
|
|
-24 |
893 881 921 F |
COVER FOR
HEADREST (LEATHER) |
|
2 |
|
|
|
08/89-07/91 5VV |
GRANITE/GRAPHITE
(GREY) |
-ZV |
|
|
|
-24 |
859
881 901 |
HEADREST WITH
COVER |
|
2 |
SPORTQUATTRO |
|
|
05/84-07/87 5CN |
QUARTZ |
|
|
|
|
25 |
443
881 719 |
COVER STRIP FOR
HEADREST |
|
2 |
|
|
|
07/80-08/84 01Z |
DARK BROWN
(BROWN) |
|
|
|
|
|
09/84-07/89 01C |
SATIN BLACK |
|
|
|
|
27 |
N 904 376 01 |
POP-RIVET |
A3,2X8 |
2 |
|
|
28 |
857
881 939 |
GUIDE FOR |
|
|
|
|
|
|
HEADREST,
DETACHABLE |
|
|
|
|
|
|
F >>
85-C-900 560 |
|
4 |
|
|
|
07/80-11/81 01Z |
DARK BROWN
(BROWN) |
|
|
|
|
-28 |
857 881 939 A |
GUIDE FOR |
|
|
|
|
|
|
HEADREST,
DETACHABLE |
|
|
|
|
|
|
F 85-C-900
561>> |
|
4 |
|
|
|
11/81-08/84 01Z |
DARK BROWN
(BROWN) |
|
|
|
|
|
09/84-07/91 01C |
SATIN BLACK |
|
|
|
|
29 |
443
881 743 |
CLIP FOR GUIDE |
|
4 |
|
|
30 |
803
885 493 |
CLAMP |
|
X |
|
|
31 |
N 015 261 1 |
CLAMP |
20X1,8 |
X |
|
|
- |
N 902 321 01 |
CLAMP |
13X6X1,5 |
X |
|
|
|
|
|
|
|
|
