| NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

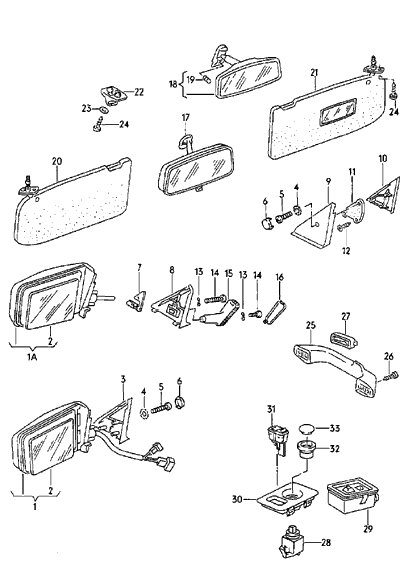

| REAR VIEW MIRROR | |||||||
| SUN VIZORS | |||||||
| GRAB HANDLE | |||||||
| 1 | 855 857 501 K | REAR VIEW MIRROR (FLAT) | LHD | 1 | QUATTRO | ||
| (ELECTRICALLY OPERATED AND | BLUE-TINTED | ||||||
| HEATED) | LEFT OUTER | ||||||
| -1 | 856 857 501 E | REAR VIEW MIRROR (FLAT) | BLUE-TINTED | ||||
| (ELECTRICALLY OPERATED AND | LEFT OUTER | ||||||
| HEATED) | |||||||
| F 85-D-900 001>> | RHD | 1 | QUATTRO | ||||
| 08/82-07/91 01C | SATIN BLACK | ||||||
| -1 | 856 857 501 K | REAR VIEW MIRROR (CONVEX) | RHD | 1 | |||
| (ELECTRICALLY OPERATED AND | |||||||
| HEATED) | |||||||
| -1 | 811 857 501 J | REAR VIEW MIRROR (FLAT) | LHD | 1 | SPORTQUATTRO | ||
| (ELECTRICALLY OPERATED AND | BLUE-TINTED | ||||||
| HEATED) | LEFT OUTER | ||||||
| -1 | 855 857 501 J | REAR VIEW MIRROR (CONVEX) | LHD | 1 | "J" | ||
| (ELECTRICALLY OPERATED AND | BLUE-TINTED | ||||||
| HEATED) | LEFT OUTER | ||||||
| -1 | 855 857 502 J | REAR VIEW MIRROR (FLAT) | LHD | 1 | QUATTRO | ||
| (ELECTRICALLY OPERATED AND | BLUE-TINTED | ||||||
| HEATED) | RIGHT OUTER | ||||||
| -1 | 855 857 502 K | REAR VIEW MIRROR (CONVEX) | LHD | 1 | QUATTRO | ||
| (ELECTRICALLY OPERATED AND | BLUE-TINTED | ||||||
| HEATED) | RIGHT OUTER | ||||||
| -1 | 811 857 502 J | REAR VIEW MIRROR (FLAT) | LHD | 1 | SPORTQUATTRO | ||
| (ELECTRICALLY OPERATED AND | BLUE-TINTED | ||||||
| HEATED) | RIGHT OUTER | ||||||
| -1 | 856 857 502 K | REAR VIEW MIRROR (FLAT) | RHD | 1 | QUATTRO | ||
| (ELECTRICALLY OPERATED AND | BLUE-TINTED | ||||||
| HEATED) | RIGHT OUTER | ||||||
| 1A | 811 857 501 G | REAR VIEW MIRROR (FLAT) | LHD | 1 | SPORTQUATTRO | ||
| (REMOTE-CONTROLLED) | BLUE-TINTED | ||||||
| LEFT OUTER | |||||||
| 2 | 433 857 535 | MIRROR GLASS (FLAT) WITH | LEFT | 1 | QUATTRO | ||
| PLATE | |||||||
| FOR REAR VIEW MIRROR: | 855 857 501 E | ||||||
| 855 857 501 K | |||||||
| -2 | 433 857 535 A | MIRROR GLASS (CONVEX) WITH | LEFT | 1 | QUATTRO | ||
| CARRIER PLATE | |||||||
| FOR REAR VIEW MIRROR: | 855 857 501 F | ||||||
| 855 857 501 J | |||||||
| 856 857 501 F | |||||||
| 856 857 501 K | |||||||
| -2 | 434 857 536 | MIRROR GLASS (FLAT) WITH | RIGHT | 1 | QUATTRO | ||
| PLATE | |||||||
| FOR REAR VIEW MIRROR: | 855 857 502 E | ||||||
| 855 857 502 J | |||||||
| 856 857 502 E | |||||||
| 856 857 502 K | |||||||
| -2 | 434 857 536 A | MIRROR GLASS (CONVEX) WITH | RIGHT | 1 | QUATTRO | ||
| CARRIER PLATE | |||||||
| FOR REAR VIEW MIRROR: | 855 857 502 F | ||||||
| 855 857 502 K | |||||||
| -2 | 433 857 535 B | MIRROR GLASS (FLAT) WITH | LEFT | 1 | SPORTQUATTRO | ||
| PLATE | BLUE-TINTED | ||||||
| FOR REAR VIEW MIRROR: | 811 857 501 G | ||||||
| 3 | 855 857 505 A | TRIM | LEFT INNER | 1 | QUATTRO | ||
| 07/80-08/84 01Z | DARK BROWN (BROWN) | ||||||
| 09/84-07/91 01C | SATIN BLACK | ||||||
| -3 | 855 857 506 A | TRIM | RIGHT INNER | 1 | |||
| 07/80-08/84 01Z | DARK BROWN (BROWN) | ||||||
| 09/84-07/91 01C | SATIN BLACK | ||||||
| -3 | 811 857 505 B | TRIM | LEFT INNER | 1 | SPORTQUATTRO | ||
| 05/84-07/87 01Z | DARK BROWN (BROWN) | ||||||
| 4 | N 012 130 1 | SHAKE-PROOF WASHER | A5,3 | 6 | |||
| 5 | N 014 132 4 | FILLISTER HD. SCREW | M5X18SB | 6 | |||
| 6 | 431 857 563 | CAP | 2 | QUATTRO | |||
| 07/80-08/84 01Z | DARK BROWN (BROWN) | ||||||
| 09/84-07/91 01C | SATIN BLACK | ||||||
| 7 | 859 857 535 | REINFORCEMENT PLATE | 1 | SPORTQUATTRO | |||
| 8 | 859 857 505 | TRIM | LEFT INNER | 1 | SPORTQUATTRO | ||
| 9 | 811 857 506 B | TRIM | RIGHT INNER | 1 | SPORTQUATTRO | ||
| 05/84-07/87 01Z | DARK BROWN (BROWN) | ||||||
| 10 | 811 853 620 | TRIM | RIGHT OUTER | 1 | SPORTQUATTRO | ||
| 05/84-07/87 01C | SATIN BLACK | ||||||
| 11 | 811 857 567 | GASKET | 1 | SPORTQUATTRO | |||
| 12 | N 013 969 4 | TAPPING SCREW, FILL. HD. | B4,8X16 | 2 | SPORTQUATTRO | ||
| 13 | N 012 221 3 | SPRING WASHER | A4X8X0,5 | 1 | SPORTQUATTRO | ||
| 14 | N 014 123 3 | FILLISTER HD. SCREW | AM4X10 | 1 | SPORTQUATTRO | ||
| 15 | 811 857 517 | LEVER | 1 | SPORTQUATTRO | |||
| 05/84-07/87 01C | SATIN BLACK | ||||||
| 16 | 811 857 627 | CAP | 1 | SPORTQUATTRO | |||
| 05/84-07/87 01C | SATIN BLACK | 1 | |||||
| 17 | 855 857 511 | REAR VIEW MIRROR, INTERIOR | 1 | ||||
| ANTI-DAZZLE | |||||||
| 07/80-07/91 01Z | DARK BROWN (BROWN) | ||||||
| 18 | 811 857 511 B | REAR VIEW MIRROR, INTERIOR, | 1 | ||||
| DOUBLE-JOINTED MOUNTING | |||||||
| (ANTI-DAZZLE) | |||||||
| 07/80-07/91 01C | SATIN BLACK | ||||||
| 19 | N 902 349 01 | THREADED PIN, SELF-LOCKING | ML4X8 | 1 | |||
| 20 | 855 857 551 | SUN VIZOR | LEFT LHD | 1 | QUATTRO | ||
| (SWIVELLING) | |||||||
| 09/84-07/85 1DL | QUARTZ | ||||||
| 08/85-07/91 5UF | GREY BEIGE | ||||||
| -20 | 856 857 551 B | SUN VIZOR WITH ILLUMINATED | LEFT RHD | 1 | QUATTRO | ||
| MIRROR | |||||||
| (SWIVELLING) | |||||||
| 09/84-07/85 1DL | QUARTZ | ||||||
| 08/85-07/91 5UF | GREY BEIGE | ||||||
| -20 | 859 857 551 | SUN VIZOR | LEFT | 1 | SPORTQUATTRO | ||
| 05/84-07/87 5DH | MONTARA (GREY) | ||||||
| 21 | 855 857 552 | SUN VIZOR WITH MIRROR | RIGHT LHD | 1 | QUATTRO | ||
| (SWIVELLING) | |||||||
| 07/80-07/91 FH2 | LIGHT BEIGE | ||||||
| -21 | 856 857 552 | SUN VIZOR WITHOUT MIRROR | RIGHT RHD | 1 | QUATTRO | ||
| (SWIVELLING) | |||||||
| 09/84-07/85 1DL | QUARTZ | ||||||
| 08/85-07/91 5UF | GREY BEIGE | ||||||
| -21 | 855 857 552 A | SUN VIZOR WITH ILLUMINATED | RIGHT | 1 | QUATTRO | ||
| MIRROR | |||||||
| (SWIVELLING) | |||||||
| 07/80-07/84 HT8 | LIGHT BEIGE | ||||||
| REPLACEMENT: | 856 857 552 | ||||||
| (HT8) | |||||||
| 08/84-07/85 1DL | QUARTZ | ||||||
| 08/85-07/91 5UF | GREY BEIGE | ||||||
| -21 | 859 857 552 | SUN VIZOR | RIGHT | 1 | SPORTQUATTRO | ||
| 05/84-07/87 5DH | MONTARA (GREY) | ||||||
| 22 | 855 857 561 | BRACKET FOR SUN VISOR | 2 | QUATTRO | |||
| 07/80-07/91 8VK | LIGHT BEIGE | ||||||
| -22 | 823 857 561 B | BRACKET FOR SUN VISOR | 2 | SPORTQUATTRO | |||
| 05/84-07/87 01C | SATIN BLACK | ||||||
| 23 | N 011 664 4 | WASHER | B4,3X12X1 | 4 | |||
| 24 | N 013 964 4 | TAPPING SCREW, FILL. HD. | B4,2X16 | 8 | QUATTRO | ||
| -24 | N 013 966 26 | TAPPING SCREW, FILL. HD. | 4,2X13STC | 6 | SPORTQUATTRO | ||
| 25 | 321 857 607 B | GRAB HANDLE | 2 | QUATTRO | |||
| 07/80-08/84 01Z | DARK BROWN (BROWN) | ||||||
| 09/84-07/85 1DH | LIGHT GREY | ||||||
| 08/85-07/91 P21 | ECRU (BEIGE) | ||||||
| 26 | N 013 979 1 | TAPPING SCREW, FILL. HD. | B5,5X16 | 8 | QUATTRO | ||
| -26 | N 013 969 4 | TAPPING SCREW, FILL. HD. | B4,8X16 | 4 | SPORTQUATTRO | ||
| 27 | 321 857 621 A | CAP | 4 | QUATTRO | |||
| 09/84-07/91 1DH | LIGHT GREY | ||||||
| 28 | 431 959 565 | SWITCH FOR REAR VIEW MIRROR | |||||
| ELECTRICALLY OPERATED | |||||||
| F >> 85-C-902 000 | 1 | ||||||
| 29 | 443 959 565 | SWITCH FOR REAR VIEW MIRROR | |||||
| ELECTRICALLY OPERATED | |||||||
| F 85-D-900 001>> | 1 | ||||||
| 08/82-07/91 01C | SATIN BLACK | ||||||
| 30 | --- --- --- | NO LONGER AVAILABLE | |||||
| 31 | 431 959 569 | SWITCH FOR HEATED AND | |||||
| ELECTRICALLY OPERATED REAR | |||||||
| VIEW MIRROR | |||||||
| F >> 85-C-902 000 | 1 | ||||||
| 07/80-08/82 01C | SATIN BLACK | ||||||
| 32 | --- --- --- | NO LONGER AVAILABLE | |||||
| 33 | 431 959 570 | KNOB FOR SWITCH | |||||
| F >> 85-C-902 000 | 1 | ||||||
| 07/80-08/82 01C | SATIN BLACK | ||||||
| - | 357 959 577 A | ADJUSTER WITH MOTOR FOR REAR | X | ||||
| VIEW MIRROR | |||||||
