NO |
CODE |
DESCRIPTION |
NOTE |
EA |
ADDITIONнн |
|
|
|

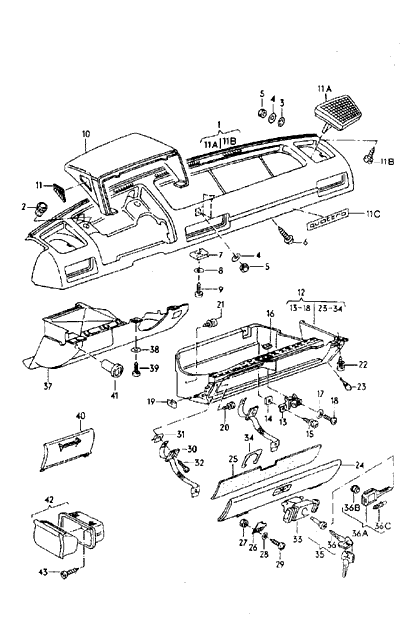

DASHBOARD |
|
|
|
|
|
|
GLOVE BOX |
|
|
|
|
|
|
COVER |
|
|
|
|
|
|
ASHTRAY |
|
|
|
|
|
|
F 85-E-900
001>> |
|
|
|
|
1 |
811 857 039 P |
DASHBOARD WITH
AIR DUCT |
LHD |
1 |
QUATTRO |
|
|
07/80-07/84 3BY |
BRAZIL (BROWN) |
-BY,VJ,VM |
|
|
|
|
08/84-07/91 5AY |
GRAPHITE |
-PC,TC,TW,YN, |
|
|
|
|
|
|
ZN,ZV,TN |
|
|
|
-1 |
812 857 039 G |
DASHBOARD WITH
AIR DUCT |
RHD |
1 |
QUATTRO |
|
|
08/83-07/84 3BY |
BRAZIL (BROWN) |
-BY,VJ,VM |
|
|
|
|
08/84-07/91 5AY |
GRAPHITE |
-PC,TC,TW,YN, |
|
|
|
|
|
|
ZN,ZV,TN |
|
|
|
-1 |
859
857 039 |
DASHBOARD WITH
AIR DUCT |
|
1 |
SPORTQUATTRO |
|
|
05/84-07/87 5AY |
GRAPHITE |
|
|
|
|
2 |
857
857 144 |
GROMMET |
|
2 |
QUATTRO |
|
3 |
803
955 637 |
SEALING WASHER |
|
2 |
|
|
4 |
N 011 666 15 |
WASHER |
6,4X18X1,6 |
3 |
|
|
5 |
N 011 006 24 |
HEX. NUT |
M6 |
5 |
|
|
6 |
N 013 975 11 |
TAPPING SCREW,
FILL. HD. |
B4,8X19 |
1 |
|
|
|
|
ALSO USE: |
N 011 665 3 |
1 |
|
|
7 |
N 015 484 1 |
SPEED NUT |
B4,8X19,8X12,7 |
2 |
|
|
8 |
N 011 523 18 |
WASHER |
A5,3X10X1 |
2 |
|
|
9 |
N 013 969 4 |
TAPPING SCREW,
FILL. HD. |
B4,8X16 |
|
|
|
|
|
F >>
85-E-901 500* |
|
4 |
|
|
-9 |
N 013 971 3 |
TAPPING SCREW,
FILL. HD. |
B4,8X22 |
|
|
|
|
|
F >>
85-E-901 500* |
|
2 |
|
|
-9 |
N 013 968 1 |
TAPPING SCREW,
FILL. HD. |
ST4,8X13-C |
|
|
|
|
|
F 85-F-900
001>>* |
|
2 |
|
|
|
|
ALSO USE: |
N 011 665 3 |
2 |
|
|
10 |
857 857 037 C |
COVER FOR
INSTRUMENT |
LHD |
1 |
QUATTRO |
|
|
|
HOUSING |
|
|
|
|
|
08/83-07/84 3BY |
BRAZIL (BROWN) |
|
|
|
|
|
08/84-07/91 5AY |
GRAPHITE |
|
|
|
|
-10 |
857 857 037 D |
COVER FOR
INSTRUMENT |
RHD |
1 |
QUATTRO |
|
|
|
HOUSING |
|
|
|
|
|
08/83-07/84 3BY |
BRAZIL (BROWN) |
|
|
|
|
|
08/84-07/91 5AY |
GRAPHITE |
|
|
|
|
11 |
857 857 433 B |
COOLING AIR
GRILLE |
LEFT LHD |
1 |
|
|
|
08/83-08/84 01Z |
DARK BROWN
(BROWN) |
|
|
|
|
|
09/84-07/87 5AY |
GRAPHITE |
|
|
|
|
-11 |
857 857 433 C |
COOLING AIR
GRILLE |
LEFT RHD |
1 |
|
|
|
08/83-07/87 01Z |
DARK BROWN
(BROWN) |
|
|
|
|
-11 |
857 857 433 F |
COOLING AIR
GRILLE WITH |
LEFT |
1 |
|
|
|
|
SENSOR |
|
|
|
|
|
08/87-07/91 5AY |
GRAPHITE |
-ZV |
|
|
|
-11 |
857 857 434 B |
COOLING AIR
GRILLE |
RIGHT LHD |
1 |
|
|
|
08/83-08/84 01Z |
DARK BROWN
(BROWN) |
|
|
|
|
|
09/84-07/91 5AY |
GRAPHITE |
|
|
|
|
-11 |
857 857 434 C |
COOLING AIR
GRILLE |
RIGHT RHD |
1 |
|
|
|
08/83-07/91 01Z |
DARK BROWN
(BROWN) |
|
|
|
|
(11A) |
811
035 443 |
TRIM |
LEFT |
1 |
|
|
|
08/84-07/91 01C |
SATIN BLACK |
|
1 |
|
|
11A |
811
035 444 |
TRIM |
RIGHT |
1 |
|
|
|
08/84-07/91 01C |
SATIN BLACK |
|
1 |
|
|
11B |
N 013 968 1 |
TAPPING SCREW,
FILL. HD. |
ST4,8X13-C |
4 |
|
|
11C |
857 853 681 A |
INSCRIPTION |
'QUATTRO' |
1 |
QUATTRO |
|
|
08/84-07/91 01C |
SATIN BLACK |
|
|
|
|
12 |
857 857 035 B |
GLOVE BOX |
LHD |
1 |
QUATTRO |
|
|
08/83-07/84 3BY |
BRAZIL (BROWN) |
-BY,VJ,VM |
|
|
|
|
08/84-07/89 5AY |
GRAPHITE |
-ZN,YN,TC |
|
|
|
-12 |
857 857 035 H |
GLOVE BOX |
LHD |
1 |
QUATTRO: 20V |
|
|
08/89-07/91 5VV |
GRANITE (GREY) |
-ZV |
|
|
|
-12 |
857 857 035 C |
GLOVE BOX |
LHD |
1 |
QUATTRO |
|
|
|
FOR VEHICLES
WITH AIR CONDIT. |
|
|
|
|
|
08/83-07/84 3BY |
BRAZIL (BROWN) |
-BY,VJ,VM |
|
|
|
|
08/84-07/89 5AY |
GRAPHITE |
-ZN,YN,TC |
|
|
|
-12 |
857 857 035 J |
GLOVE BOX |
LHD |
1 |
QUATTRO: 20V |
|
|
|
FOR VEHICLES
WITH AIR CONDIT. |
|
|
|
|
|
08/89-07/91 5VV |
GRANITE (GREY) |
-ZV |
|
|
|
-12 |
857 857 035 D |
GLOVE BOX |
RHD |
1 |
QUATTRO |
|
|
08/84-07/89 5AY |
GRAPHITE |
-ZN,YN,TC |
|
|
|
-12 |
857 857 035 K |
GLOVE BOX |
RHD |
1 |
QUATTRO: 20V |
|
|
08/89-07/91 5VV |
GRANITE (GREY) |
-ZV |
|
|
|
-12 |
859
857 094 |
GLOVE BOX |
|
1 |
SPORTQUATTRO |
|
|
05/84-07/87 5AY |
GRAPHITE |
|
|
|
|
13 |
811 857 133 D |
LOCK PLATE |
LHD |
1 |
QUATTRO |
|
|
08/83-07/91 01C |
SATIN BLACK |
|
|
|
|
-13 |
812
857 133 |
LOCK PLATE |
|
|
|
|
|
|
F 85-F-900
001>> |
RHD |
1 |
QUATTRO |
|
|
08/84-07/91 01C |
SATIN BLACK |
|
|
|
|
14 |
861
809 135 |
EXPANDING NUT |
|
1 |
QUATTRO |
|
15 |
N 013 941 3 |
TAPPING SCREW,
FILL. HD. |
B4,8X32 |
1 |
|
|
|
|
ALSO USE: |
N 011 665 3 |
1 |
|
|
16 |
N 011 052 4 |
NUT, SQUARE |
M6 |
1 |
|
|
17 |
N 011 547 6 |
WASHER |
A6,5X14X1,6 |
1 |
|
|
18 |
N 014 139 5 |
FILLISTER HD.
SCREW |
M6X12 |
1 |
|
|
19 |
N 015 458 1 |
SPEED NUT |
B4,8X19X16 |
2 |
QUATTRO |
|
20 |
N 013 969 4 |
TAPPING SCREW,
FILL. HD. |
B4,8X16 |
2 |
|
|
|
|
ALSO USE: |
N 011 523 18 |
2 |
|
|
21 |
N 013 971 3 |
TAPPING SCREW,
FILL. HD. |
B4,8X22 |
1 |
|
|
|
|
ALSO USE: |
N 011 523 18 |
1 |
|
|
22 |
N 013 969 4 |
TAPPING SCREW,
FILL. HD. |
B4,8X16 |
1 |
|
|
|
|
ALSO USE: |
N 011 523 18 |
1 |
|
|
23 |
443
857 139 |
BUFFER |
|
2 |
QUATTRO |
|
-23 |
811
857 139 |
BUFFER |
|
2 |
SPORTQUATTRO |
|
- |
N 011 523 18 |
WASHER |
A5,3X10X1 |
2 |
SPORTQUATTRO |
|
- |
N 015 484 1 |
SPEED NUT |
B4,8X19,8X12,7 |
2 |
|
|
- |
N 013 969 4 |
TAPPING SCREW,
FILL. HD. |
B4,8X16 |
2 |
SPORTQUATTRO |
|
- |
N 011 665 3 |
WASHER |
5,3X15X1,6 |
1 |
|
|
- |
N 013 971 3 |
TAPPING SCREW,
FILL. HD. |
B4,8X22 |
1 |
SPORTQUATTRO |
|
24 |
811 857 121 B |
GLOVE BOX LID |
LHD |
1 |
QUATTRO |
|
|
08/83-07/84 3BY |
BRAZIL (BROWN) |
|
|
|
|
|
08/84-07/89 5AY |
GRAPHITE |
|
|
|
|
-24 |
857 857 121 A |
GLOVE BOX LID |
LHD |
1 |
QUATTRO: 20V |
|
|
08/89-07/91 5VV |
GRANITE (GREY) |
-ZV |
|
|
|
-24 |
812
857 121 |
GLOVE BOX LID |
RHD |
1 |
QUATTRO |
|
|
08/83-07/84 3BY |
BRAZIL (BROWN) |
|
|
|
|
|
08/84-07/89 5AY |
GRAPHITE |
|
|
|
|
-24 |
857 857 121 B |
GLOVE BOX LID |
RHD |
1 |
QUATTRO: 20V |
|
|
08/89-07/91 5VV |
GRANITE (GREY) |
-ZV |
|
|
|
-24 |
859
857 121 |
GLOVE BOX LID |
LHD |
1 |
SPORTQUATTRO |
|
|
05/84-07/87 5AY |
GRAPHITE |
|
|
|
|
25 |
811
857 126 |
LINING |
|
1 |
|
|
|
08/84-07/91 3AU |
GRAPHITE |
|
|
|
|
26 |
--- --- --- |
NO LONGER
AVAILABLE |
LHD |
2 |
QUATTRO |
|
-26 |
812
857 159 |
MOUNTING FOR
FLAP |
RHD |
2 |
QUATTRO |
|
|
08/83-07/91 01Z |
DARK BROWN
(BROWN) |
|
|
|
|
-26 |
811 857 159 A |
BEARING FOR |
|
2 |
SPORTQUATTRO |
|
|
|
GLOVE BOX LID |
|
|
|
|
- |
811
857 141 |
SPRING |
|
2 |
SPORTQUATTRO |
|
27 |
N 011 116 5 |
HEX. NUT |
BM6 |
4 |
|
|
28 |
N 011 557 2 |
WASHER |
6,4X11X1,6 |
4 |
QUATTRO |
|
-28 |
N 011 524 23 |
WASHER |
A6,4X12,5X1,6 |
2 |
SPORTQUATTRO |
|
29 |
N 014 139 5 |
FILLISTER HD.
SCREW |
M6X12 |
4 |
|
|
30 |
811
857 174 |
CAP |
|
2 |
|
|
|
08/83-07/91 01C |
SATIN BLACK |
|
|
|
|
31 |
N 015 422 2 |
SPEED NUT |
ST4,2X17X11,3 |
2 |
|
|
32 |
N 013 966 26 |
TAPPING SCREW,
FILL. HD. |
4,2X13STC |
2 |
|
|
-32 |
N 013 964 4 |
TAPPING SCREW,
FILL. HD. |
B4,2X16 |
1 |
|
|
33 |
171 857 131 B |
CATCH |
|
1 |
|
|
|
08/83-07/91 01C |
SATIN BLACK |
|
1 |
|
|
34 |
811
857 119 |
CLAMP |
|
1 |
QUATTRO |
|
|
08/83-07/91 01C |
SATIN BLACK |
|
|
|
|
-34 |
171
857 119 |
CLAMP |
|
1 |
SPORTQUATTRO |
|
|
05/84-07/87 01C |
SATIN BLACK |
|
|
|
|
35 |
443 857 113 A |
LOCK CYLINDER
FOR |
|
|
|
|
|
|
GLOVE BOX LID |
|
|
|
|
|
|
F >>
85-E-900 759 |
|
1 |
|
|
|
|
PROFILE AH |
|
|
|
|
36 |
443
837 220 |
MAIN KEY |
|
1 |
|
|
|
|
PROFILE HV |
|
|
|
|
|
|
QUOTE KEY
NUMBER |
|
|
|
|
|
|
FOR CUT KEYS |
|
|
|
|
-36 |
443 837 220 C |
MAIN KEY |
|
|
|
|
|
|
PROFILE AH |
|
|
|
|
|
|
QUOTE KEY
NUMBER |
|
|
|
|
|
|
FOR CUT KEYS |
|
|
|
|
|
|
F 85-E-900
760>> |
|
1 |
|
|
|
08/82-07/91 01C |
SATIN BLACK |
|
|
|
|
36A |
443 837 220 B |
MAIN KEY WITH
LIGHT |
|
|
|
|
|
|
PROFILE AH |
|
|
|
|
|
|
QUOTE KEY
NUMBER |
|
|
|
|
|
|
FOR CUT KEYS |
|
|
|
|
|
|
F 85-E-900
760>> |
|
1 |
|
|
|
01/84-07/91 01C |
SATIN BLACK |
|
|
|
|
36B |
N 902 624 01 |
MICRO-CELL
BATTERY |
1,5V |
1 |
|
|
36C |
N 902 625 01 |
BULB WITH
THREAD |
B1,5V |
1 |
|
|
(36C) |
N 903 145 01 |
BULB |
1,5V/0,09A |
1 |
|
|
37 |
857
857 919 |
SHELF |
LEFT LHD |
1 |
QUATTRO |
|
|
|
REWORK IF
NECESSARY |
|
|
|
|
|
|
SEE
ILLUSTRATION: |
103-10 |
|
|
|
|
08/84-07/89 5AY |
GRAPHITE |
|
|
|
|
-37 |
857 857 919 A |
SHELF |
LEFT LHD |
1 |
QUATTRO: 20V |
|
|
08/89-07/91 5VV |
GRANITE (GREY) |
-ZV |
|
|
|
-37 |
859
857 921 |
SHELF |
LEFT LHD |
1 |
SPORTQUATTRO |
|
|
05/84-07/87 5AY |
GRAPHITE |
|
|
|
|
-37 |
857
857 920 |
SHELF |
RIGHT RHD |
1 |
QUATTRO |
|
|
08/84-07/89 5AY |
GRAPHITE |
|
|
|
|
-37 |
857 857 920 A |
SHELF |
RIGHT RHD |
1 |
QUATTRO: 20V |
|
|
08/89-07/91 5VV |
GRANITE (GREY) |
-ZV |
|
|
|
38 |
N 011 523 18 |
WASHER |
A5,3X10X1 |
3 |
QUATTRO |
|
-38 |
N 015 275 1 |
WASHER |
5X10X0,8 |
3 |
SPORTQUATTRO |
|
39 |
N 013 975 11 |
TAPPING SCREW,
FILL. HD. |
B4,8X19 |
3 |
QUATTRO |
|
-39 |
N 013 969 4 |
TAPPING SCREW,
FILL. HD. |
B4,8X16 |
3 |
SPORTQUATTRO |
|
40 |
811 857 151 B |
COVER FOR
CENTRAL |
|
1 |
QUATTRO |
|
|
|
ELECTRICS |
|
|
|
|
|
08/83-07/91 01C |
SATIN BLACK |
|
|
|
|
-40 |
811 857 151 C |
COVER FOR
CENTRAL |
|
1 |
SPORTQUATTRO |
|
|
|
ELECTRICS |
|
|
|
|
|
05/84-07/87 01C |
SATIN BLACK |
|
1 |
|
|
41 |
857
919 239 |
WARNING LAMP |
|
1 |
|
|
|
|
FOR HAND BRAKE
CONTROL SYSTEM |
|
|
|
|
42 |
811
857 405 |
ASHTRAY |
|
1 |
|
|
|
08/83-07/91 01Z |
DARK BROWN
(BROWN) |
|
|
|
|
43 |
N 013 975 11 |
TAPPING SCREW,
FILL. HD. |
B4,8X19 |
1 |
|
|
|
|
|
|
|
|
