NO |
CODE |
DESCRIPTION |
NOTE |
EA |
ADDITIONнн |
|
|
|

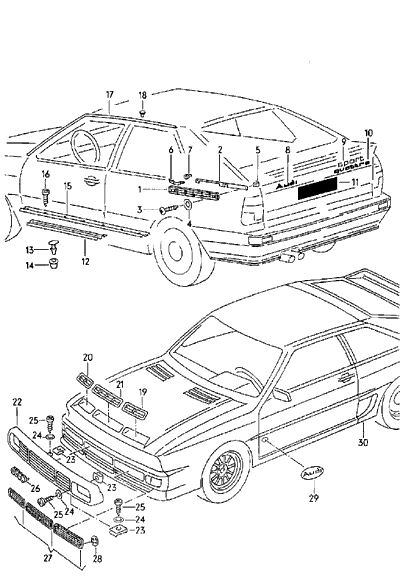

MOLDINGS - ROOF |
|
|
SPORTQUATTRO |
|
|
|
RADIATOR GRILLE |
|
|
|
|
|
|
COOLING AIR
GRILLE |
|
|
|
|
|
|
SCUFF PLATE -
SILL PANEL |
|
|
|
|
|
|
INSCRIPTIONS |
|
|
|
|
1 |
855
853 215 |
TRIM FOR
VENTILATION |
LEFT |
1 |
|
|
-1 |
855
853 216 |
TRIM FOR
VENTILATION |
RIGHT |
1 |
|
|
2 |
855 853 595 A |
PACKING |
LEFT |
1 |
|
|
|
05/84-07/87 01C |
SATIN BLACK |
|
|
|
|
-2 |
855 853 596 A |
PACKING |
RIGHT |
1 |
|
|
|
05/84-07/87 01C |
SATIN BLACK |
|
|
|
|
3 |
N 013 959 3 |
TAPPING SCREW,
FILL. HD. |
B3,5X16 |
6 |
|
|
4 |
411
945 279 |
WASHER |
|
6 |
|
|
5 |
811
853 715 |
EXPANDING NUT |
|
6 |
|
|
6 |
855
853 217 |
TRIM FOR PILLAR
C |
LEFT |
1 |
|
|
-6 |
855
853 218 |
TRIM FOR PILLAR
C |
RIGHT |
1 |
|
|
7 |
113
853 615 |
GROMMET |
|
2 |
|
|
8 |
857
853 687 |
INSCRIPTION |
'AUDI' |
1 |
|
|
|
05/84-07/87 01C |
SATIN BLACK |
|
|
|
|
|
05/84-07/87 97A |
DIAMOND-SILVER |
|
|
|
|
9 |
859
853 737 |
INSCRIPTION |
'SPORT' |
1 |
|
|
|
05/84-07/87 01C |
SATIN BLACK |
|
|
|
|
|
05/84-07/87 97A |
DIAMOND-SILVER |
|
|
|
|
10 |
857
853 737 |
INSCRIPTION |
'QUATTRO' |
1 |
|
|
|
05/84-07/87 01C |
SATIN BLACK |
|
|
|
|
|
05/84-07/87 97A |
DIAMOND-SILVER |
|
|
|
|
11 |
855 853 487 A |
TRIM FOIL |
|
1 |
|
|
|
05/84-07/87 01C |
SATIN BLACK |
|
|
|
|
12 |
811 853 541 B |
SCUFF PLATE -
SILL PANEL |
LEFT |
1 |
|
|
|
05/84-07/87 01C |
SATIN BLACK |
|
|
|
|
-12 |
811 853 542 B |
SCUFF PLATE -
SILL PANEL |
RIGHT |
1 |
|
|
|
05/84-07/87 01C |
SATIN BLACK |
|
|
|
|
13 |
811
853 593 |
CLIP |
|
10 |
|
|
14 |
811
853 548 |
GROMMET |
|
10 |
|
|
15 |
859
853 907 |
COVER STRIP |
LEFT |
2 |
|
|
|
05/84-07/87 01C |
SATIN BLACK |
|
|
|
|
-15 |
859
853 908 |
COVER STRIP |
RIGHT |
1 |
|
|
|
05/84-07/87 01C |
SATIN BLACK |
|
|
|
|
16 |
N 014 087 2 |
TAPPING SCREW,
CSK. |
ST3,5X16-C |
14 |
|
|
17 |
859 853 705 A |
MOLDING - ROOF |
LEFT |
1 |
|
|
-17 |
859 853 706 A |
MOLDING - ROOF |
RIGHT |
1 |
|
|
18 |
N 904 376 01 |
POP-RIVET |
A3,2X8 |
16 |
|
|
19 |
859
853 017 |
COOLING AIR
GRILLE |
LEFT |
1 |
|
|
20 |
859
853 018 |
COOLING AIR
GRILLE |
RIGHT |
1 |
|
|
21 |
859
853 019 |
COOLING AIR
GRILLE |
CENTER |
1 |
|
|
22 |
859
853 651 |
RADIATOR GRILLE |
|
1 |
|
|
23 |
N 015 484 1 |
SPEED NUT |
B4,8X19,8X12,7 |
3 |
|
|
24 |
N 011 651 1 |
WASHER |
5,8X10X0,9 |
3 |
|
|
25 |
N 013 975 11 |
TAPPING SCREW,
FILL. HD. |
B4,8X19 |
3 |
|
|
26 |
811
853 601 |
AUDI SIGN |
FRONT |
1 |
|
|
27 |
859
853 670 |
COOLING AIR
GRILLE |
CENTER |
3 |
|
|
28 |
N 012 057 1 |
CLAMPING WASHER |
5X14,3 |
X |
|
|
29 |
893
853 621 |
AUDI SIGN |
|
2 |
|
|
30 |
--- --- --- |
NO LONGER
AVAILABLE |
|
|
|
|
- |
DH 009 100 |
1K WINDOW
ADHESIVE |
300ML |
X |
|
|
|
|
|
|
|
|
