NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

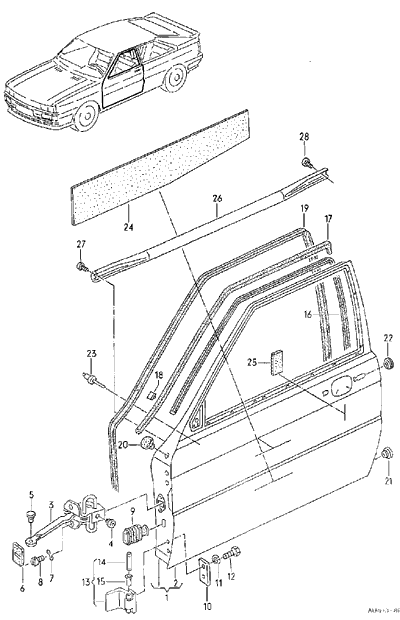

DOORS | |||||||
1 | 855 831 051 E | DOOR | LEFT | 1 | QUATTRO | ||
-1 | 811 831 051 J | DOOR | LEFT | 1 | SPORTQUATTRO | ||
2 DOORS | |||||||
ALSO USE: | N 020 032 1 | 7 | |||||
-1 | 855 831 052 E | DOOR | RIGHT | 1 | QUATTRO | ||
-1 | 811 831 052 J | DOOR | RIGHT | 1 | SPORTQUATTRO | ||
2 DOORS | |||||||
ALSO USE: | N 020 032 1 | 7 | |||||
- | N 020 032 1 | PLUG | A6X0,8 | X | |||
2 | 855 831 105 | DOOR OUTER PANEL | LEFT | 1 | |||
-2 | 855 831 106 | DOOR OUTER PANEL | RIGHT | 1 | |||
3 | 443 839 249 B | CHECK ROD - DOOR | 2 | ||||
-5 | 823 837 257 | PIN | |||||
F >> 85-C-902 000 | 2 | ||||||
-5 | N 023 281 1 | SPRING PIN | 4,5X16 | ||||
F >> 85-C-902 000 | 2 | ||||||
5 | 433 837 243 | RIVET | |||||
F 85-D-900 001>> | 2 | ||||||
6 | 867 837 267 | COVER | 2 | ||||
7 | 311 837 943 | CONCAVE WASHER | 6,4X18 | 4 | |||
8 | N 014 750 6 | BOLT, WITH HEX. SOCKET | M6X10 | 4 | |||
HD. | |||||||
9 | 4A0 959 845 C | BELLOWS | 52X30/47X27/ | 2 | |||
50X30 | |||||||
10 | 433 831 331 | PLATE | 2 | ||||
11 | N 012 038 7 | LOCK RING | 8 | 8 | |||
12 | N 010 239 11 | SCREW, HEXAGONAL HEAD | M8X18 | 8 | QUATTRO | ||
-12 | N 010 238 20 | SCREW, HEXAGONAL HEAD | M8X15 | 8 | |||
13 | 433 833 401 A | DOOR HINGE | LOWER | 2 | |||
-13 | 433 831 401 A | DOOR HINGE | UPPER | 2 | |||
14 | 433 831 421 A | PIN - HINGE | 4 | ||||
15 | 433 831 441 | BUSH | 4 | ||||
16 | 855 837 437 | PROTECTIVE EDGING | LEFT | 1 | QUATTRO | ||
07/80-07/91 01Z | DARK BROWN (BROWN) | ||||||
-16 | 811 837 437 | PROTECTIVE EDGING | LEFT | 1 | SPORTQUATTRO | ||
-16 | 855 837 438 | PROTECTIVE EDGING | RIGHT | 1 | QUATTRO | ||
07/80-07/91 01Z | DARK BROWN (BROWN) | ||||||
-16 | 811 837 438 | PROTECTIVE EDGING | RIGHT | 1 | SPORTQUATTRO | ||
17 | 855 831 711 | DOOR SEAL, OUTER | LEFT | ||||
F >> 85-C-902 000 | 1 | QUATTRO | |||||
17 | 855 831 711 A | DOOR SEAL, OUTER | LEFT | ||||
F 85-D-900 001>> | 1 | QUATTRO | |||||
-17 | 811 831 711 B | DOOR SEAL, OUTER | LEFT | 1 | SPORTQUATTRO | ||
-17 | 855 831 712 | DOOR SEAL, OUTER | RIGHT | ||||
F >> 85-C-902 000 | 1 | QUATTRO | |||||
-17 | 855 831 712 A | DOOR SEAL, OUTER | RIGHT | ||||
F 85-D-900 001>> | 1 | QUATTRO | |||||
-17 | 811 831 712 B | DOOR SEAL, OUTER | RIGHT | 1 | SPORTQUATTRO | ||
18 | 831 833 719 | CLIP | 14 | ||||
19 | 857 831 721 | DOOR SEAL | INNER | 2 | QUATTRO | ||
-19 | 859 831 721 | DOOR SEAL | 2 | SPORTQUATTRO | |||
20 | N 020 022 3 | PLUG | A8X1 | 2 | |||
21 | N 020 025 1 | PLUG | A12X1 | 2 | |||
22 | 111 971 911 A | GROMMET | 16,5 | 2 | |||
23 | 431 805 121 A | T-BOLT | 4 | ||||
24 | 323 863 950 | SOUND ABSORBER (ADHESIVE) | 550X250X2 | 2 | |||
'ORDER UNIT 6' | |||||||
25 | 811 837 993 | GASKET | 2 | ||||
- | 443 831 469 A | GROMMET | 50X30,5 | 2 |
