| NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

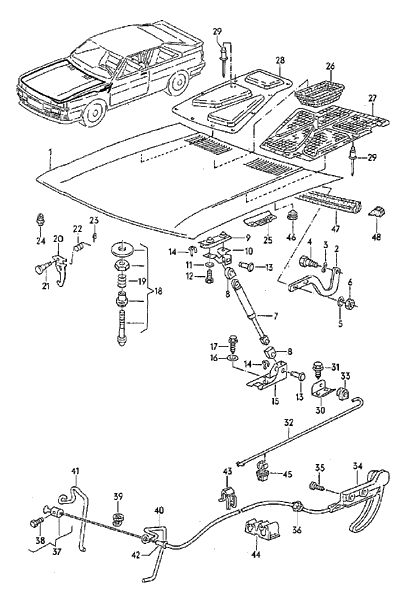

| FLAP, FRONT | |||||||
| 1 | 811 823 029 | FLAP, FRONT | 1 | QUATTRO | |||
| -1 | 859 823 029 | FLAP, FRONT | 1 | SPORTQUATTRO | |||
| 2 | 811 823 305 | HINGE - FLAP | 2 | ||||
| 3 | 411 831 443 | SPRING WASHER | 2 | ||||
| 4 | 431 823 327 | SCREW, HEXAGONAL HEAD | 2 | ||||
| 5 | N 011 525 13 | WASHER | A8,4 | 4 | |||
| 6 | N 011 008 8 | HEX. NUT | M8 | 4 | |||
| 7 | 857 823 359 | GAS-FILLED STRUT | 2 | QUATTRO | |||
| 8 | 443 823 435 A | PROTECTIVE CAP | 4 | QUATTRO | |||
| 9 | 857 823 365 | REINFORCEMENT FOR | 2 | QUATTRO | |||
| GAS FILLED STRUT | |||||||
| 10 | 857 823 381 | MOUNTING FOR GAS-FILLED STRUT | 2 | QUATTRO | |||
| 11 | N 011 524 23 | WASHER | A6,4X12,5X1,6 | 4 | QUATTRO | ||
| 12 | N 010 215 27 | SCREW, HEXAGONAL HEAD | M6X15 | 4 | QUATTRO | ||
| 13 | 443 823 471 B | PIN | 4 | QUATTRO | |||
| 14 | N 012 327 6 | LOCK WASHER | 6 | 4 | |||
| 15 | 857 821 181 | MOUNTING FOR GAS-FILLED STRUT | LEFT | 1 | QUATTRO | ||
| -15 | 857 821 182 | MOUNTING FOR GAS-FILLED STRUT | RIGHT | 1 | QUATTRO | ||
| 16 | N 011 524 23 | WASHER | A6,4X12,5X1,6 | 2 | QUATTRO | ||
| 17 | N 015 946 1 | TAPPING SCREW,HEX.HD. | A6,5X19 | 2 | QUATTRO | ||
| 18 | 431 898 550 | REPAIR KIT FOR | 1 | ||||
| LOCK PIN | |||||||
| 19 | 431 823 541 | PRESSURE SPRING | 2 | ||||
| 20 | 811 823 485 A | HOOK | 1 | ||||
| 21 | 811 823 407 | PIN | 1 | ||||
| 22 | 431 823 489 D | SPRING | 1 | ||||
| 23 | N 033 972 2 | PIN | 6 | 1 | |||
| 24 | 867 827 500 | BUFFER | 30X22/12 | 2 | |||
| 25 | 859 823 417 | SUPPORT PLATE | 1 | SPORTQUATTRO | |||
| 26 | 859 129 612 | BELLOWS | 1 | SPORTQUATTRO | |||
| INTAKE AIR DUCT | |||||||
| 27 | 859 823 749 | GRILLE | 1 | SPORTQUATTRO | |||
| 28 | 859 863 825 | HEAT INSULATING | 1 | SPORTQUATTRO | |||
| 29 | N 906 349 01 | POP-RIVET | A4X14 | X | SPORTQUATTRO | ||
| GRILLE | |||||||
| -29 | N 904 374 01 | POP-RIVET | A4,8X10X10,2 | X | SPORTQUATTRO | ||
| HEAT INSULATING | |||||||
| 30 | 811 821 157 C | MOUNTING FOR HOOD | |||||
| STAY | |||||||
| F >> 85-H-902 400 | 1 | ||||||
| 31 | 311 821 143 | TAPPING SCREW,HEX.HD. | 6,5X21,5 | 1 | |||
| 32 | 431 823 363 | STAY - HOOD | |||||
| F >> 85-H-902 400 | 1 | ||||||
| 33 | 171 823 395 | RUBBER MOUNTING | 16/6,2 | ||||
| F >> 85-H-902 400 | 1 | ||||||
| 34 | 811 823 531 | CABLE - HOOD LOCK | 1 | QUATTRO | |||
| -34 | 859 823 531 | CABLE - HOOD LOCK | 1 | SPORTQUATTRO | |||
| 35 | N 013 971 3 | TAPPING SCREW, FILL. HD. | B4,8X22 | 2 | |||
| 36 | 311 611 743 | GROMMET | 20.apr | 1 | |||
| 37 | 811 823 555 | NIPPLE | 1 | ||||
| 38 | N 010 263 1 | SCREW, HEXAGONAL HEAD | M4X6 | 1 | |||
| 39 | 893 823 573 | HOLDER FOR CABLE | 3 | ||||
| 40 | 811 823 589 B | LOCKING LEVER FOR | LEFT | 1 | |||
| LOCK PIN | |||||||
| 41 | 811 823 590 B | LOCKING LEVER FOR | RIGHT | 1 | |||
| LOCK PIN | |||||||
| 42 | 443 823 597 A | SLEEVE | 2 | ||||
| 43 | 431 971 848 C | CLIP | 3 | ||||
| 44 | 811 971 848 C | BRACKET FOR HOSE | 1 | ||||
| 45 | 357 823 397 | CLIP | 1 | ||||
| 46 | N 020 025 1 | PLUG | A12X1 | 2 | |||
| 47 | 431 823 723 | GASKET | 1 | ||||
| 48 | 811 823 731 B | SEAL | 2 | ||||
| - | AKL 381 035 50 | INTERMEDIATE (ZINC) | 1 | ||||
| (BAG CONTAINS 50 PIECES) | |||||||
