NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

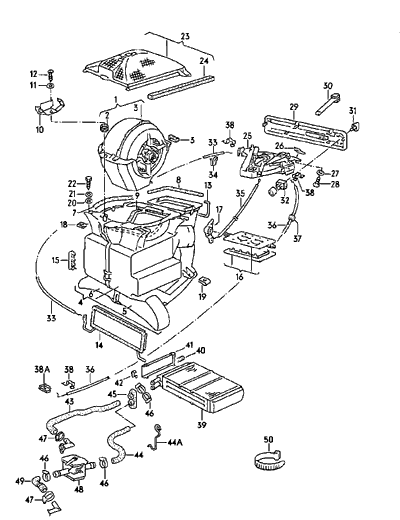

FRESH AIR | |||||||
AND HEATER CONTROLS | |||||||
FAN | |||||||
HEAT EXCHANGER | |||||||
1 | 251 819 015 | ELECTRIC FAN MOTOR | 1 | ||||
2 | 321 819 063 | GROMMET | 13.sep | 1 | |||
3 | 321 819 064 | MOUNTING | REAR | 1 | |||
4 | 811 819 014 A | FLAP CONTROL BOX | 1 | ||||
5 | 321 819 151 A | AIR DUCT | LEFT | 1 | |||
07/80-07/91 01C | SATIN BLACK | ||||||
6 | 321 819 152 A | AIR DUCT | RIGHT | 1 | |||
07/80-07/91 01C | SATIN BLACK | ||||||
7 | 321 819 089 | GASKET | 2 | ||||
8 | 321 819 018 | GASKET | 1 | ||||
9 | 321 819 017 | GASKET | 680X8X10 | 1 | |||
10 | 321 971 280 | BRACKET FOR RESISTANCE | 1 | ||||
11 | N 011 665 3 | WASHER | 5,3X15X1,6 | 1 | |||
12 | N 013 964 4 | TAPPING SCREW, FILL. HD. | B4,2X16 | 1 | |||
13 | 823 819 079 | CLAMP | 1 | ||||
14 | 321 819 361 A | CONTROL FLAP | 1 | ||||
15 | 321 819 645 | CLIP | 1 | ||||
07/80-07/91 01C | SATIN BLACK | ||||||
16 | 321 819 097 A | FLAP | 1 | ||||
17 | 321 819 123 B | LEVER FOR FLAP | 1 | ||||
07/80-07/91 01C | SATIN BLACK | ||||||
18 | N 015 423 1 | SPEED NUT | B5,5X26,4X20,2 | 4 | |||
19 | N 015 458 1 | SPEED NUT | B4,8X19X16 | 2 | |||
20 | N 011 666 15 | WASHER | 6,4X18X1,6 | 4 | |||
21 | 803 955 637 | SEALING WASHER | 4 | ||||
22 | N 013 948 1 | TAPPING SCREW, FILL. HD. | B5,5X25 | 4 | |||
23 | 321 819 083 | FOLIAGE GRILLE | 1 | ||||
24 | 321 819 143 A | GASKET | 1 | ||||
25 | 321 819 045 B | FRESH AIR | |||||
AND HEATER CONTROLS | |||||||
F >> 85-D-902 500 | 1 | ||||||
-25 | 811 819 045 A | FRESH AIR | |||||
AND HEATER CONTROLS | |||||||
F 85-E-900 001>> | 1 | ||||||
26 | N 015 442 1 | SPEED NUT | B4,2X12,8X11 | 2 | QUATTRO | ||
-26 | N 015 453 1 | SPEED NUT | B4,2X13,9X12,7 | 2 | SPORTQUATTRO | ||
27 | N 011 665 3 | WASHER | 5,3X15X1,6 | 1 | |||
28 | N 013 966 26 | TAPPING SCREW, FILL. HD. | 4,2X13STC | 2 | |||
29 | 857 819 073 | TRIM FOR FRESH AIR AND | |||||
HEATER CONTROLS | |||||||
F >> 85-D-900 581 | 1 | ||||||
07/80-08/82 01Z | DARK BROWN (BROWN) | ||||||
-29 | 855 819 073 B | TRIM FOR FRESH AIR AND | |||||
HEATER CONTROLS | |||||||
F 85-D-900 582>> 85-D-902 500 | 1 | ||||||
09/82-08/83 01Z | DARK BROWN (BROWN) | ||||||
-29 | 811 819 073 G | TRIM FOR FRESH AIR AND | |||||
HEATER CONTROLS | |||||||
F 85-E-900 001>> 85-E-901 500* | 1 | ||||||
08/83-07/84 01C | SATIN BLACK | ||||||
-29 | 857 819 073 C | TRIM FOR FRESH AIR AND | |||||
HEATER CONTROLS | |||||||
F 85-F-900 001>> | 1 | ||||||
08/84-07/91 01C | SATIN BLACK | ||||||
-29 | 859 820 073 | TRIM FOR FRESH AIR AND | 1 | SPORTQUATTRO | |||
HEATER CONTROLS | |||||||
05/84-07/87 01C | SATIN BLACK | ||||||
30 | 321 819 129 A | KNOB | |||||
F >> 85-D-902 500 | 3 | ||||||
07/80-08/83 01Z | DARK BROWN (BROWN) | ||||||
-30 | 811 819 823 C | KNOB | |||||
F 85-E-900 001>> | 3 | ||||||
08/83-07/91 01C | SATIN BLACK | ||||||
31 | 321 959 513 B | KNOB FOR SWITCH | 21MM | 1 | |||
32 | 171 959 511 | SWITCH FOR BLOWER MOTOR | 1 | ||||
- | 859 959 505 | SWITCH FOR BLOWER MOTOR | 1 | SPORTQUATTRO | |||
33 | 811 819 839 | CABLE FOR CONTROL FLAP | 460MM | 1 | QUATTRO | ||
-33 | 859 819 839 | CABLE FOR CONTROL FLAP | 1 | SPORTQUATTRO | |||
34 | 811 819 859 A | CLAMP | 1 | ||||
35 | 811 819 836 | CABLE FOR FLAP | 830MM | 1 | |||
36 | 811 819 837 C | CABLE FOR HEATER VALVE | |||||
F >> 85-D-902 500 | 1 | ||||||
-36 | 811 819 837 E | CABLE FOR HEATER VALVE | |||||
F 85-E-900 001>> | 1 | ||||||
37 | 803 959 843 | GROMMET | 12,5/4 | 1 | |||
38 | 811 819 679 | SPRING CLIP | 1 | ||||
SUPPLIED | |||||||
ALTERNATIVELY: | 823 819 679 | 1 | |||||
38A | 811 819 145 A | CLAMP | 1 | ||||
39 | 171 819 031 E | HEAT EXCHANGER | 1 | ||||
40 | 701 819 069 | GASKET | 814X15X6 | 2 | |||
41 | 171 819 173 | CAP FOR HEAT EXCHANGER | 1 | ||||
07/80-07/91 01C | SATIN BLACK | ||||||
42 | 321 819 059 | CLAMP | 7 | ||||
43 | 321 819 371 E | WATER HOSE | 1 | ||||
-43 | 859 819 371 | WATER HOSE | 1 | SPORTQUATTRO | |||
44 | 321 819 375 D | WATER HOSE | |||||
F >> 85-K-020 000* | 1 | ||||||
-44 | 857 819 375 | WATER HOSE | |||||
F 85-L-000 001>> | 1 | ||||||
-44 | 859 819 375 | WATER HOSE | 1 | SPORTQUATTRO | |||
44A | 859 819 379 | BRACKET | 1 | SPORTQUATTRO | |||
45 | 861 819 699 A | DOUBLE GROMMET | 1 | ||||
46 | N 905 618 01 | CLIP | AL16-28 | 3 | |||
47 | N 102 581 01 | CLIP | AL23-35 | 2 | |||
48 | 171 819 809 E | HEATER VALVE | 1 | ||||
-48 | 811 819 809 | HEATER VALVE | 1 | ||||
79 | 855 819 375 E | WATER HOSE | |||||
F >> 85-K-020 000 | 1 | ||||||
-49 | 857 819 375 A | WATER HOSE | |||||
F 85-L-000 001>>* | 1 | ||||||
50 | N 020 902 2 | CABLE BINDER | 6X246 | 1 | |||
-50 | N 900 603 01 | CABLE BINDER | 6,5X175 | X |
