| NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

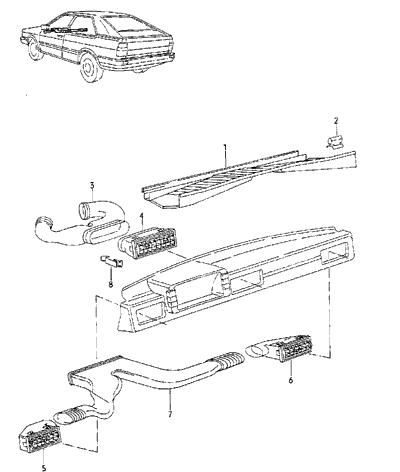

| AIR VENT | |||||||
| AIR HOSE | |||||||
| WATER DEFLECTOR | |||||||
| 1 | 811 819 099 B | WATER DEFLECTOR | LHD | 1 | |||
| -1 | 857 819 099 | WATER DEFLECTOR | RHD | 1 | |||
| -1 | 811 819 099 A | WATER DEFLECTOR | 1 | AIR CONDIT. | |||
| 2 | 191 819 145 A | CLAMP | 4 | ||||
| 3 | 811 819 457 A | AIR HOSE | 1 | ||||
| 4 | 811 819 685 | AIR VENT | CENTER | ||||
| F >> 85-D-902 500 | 1 | ||||||
| 07/80-08/83 01Z | DARK BROWN (BROWN) | ||||||
| -4 | 811 819 685 E | AIR VENT | CENTER | ||||
| F 85-E-900 001>> | 1 | ||||||
| 08/83-07/91 01C | SATIN BLACK | ||||||
| 5 | 857 819 703 | AIR VENT | LEFT | ||||
| F >> 85-C-900 435 | 1 | ||||||
| 07/80-11/81 01Z | DARK BROWN (BROWN) | ||||||
| -5 | 811 819 703 | AIR VENT | LEFT | ||||
| F 85-C-900 436>> 85-D-902 500 | 1 | ||||||
| 10/81-08/83 01Z | DARK BROWN (BROWN) | ||||||
| -5 | 811 819 703 E | AIR VENT | LEFT | ||||
| F 85-E-900 001>> | 1 | ||||||
| 08/83-07/91 01C | SATIN BLACK | ||||||
| 6 | 857 819 704 | AIR VENT | RIGHT | ||||
| F >> 85-C-900 435 | 1 | ||||||
| 07/80-11/81 01Z | DARK BROWN (BROWN) | ||||||
| -6 | 811 819 704 | AIR VENT | RIGHT | ||||
| F 85-C-900 436>> 85-D-902 500 | 1 | ||||||
| 10/81-08/83 01Z | DARK BROWN (BROWN) | ||||||
| -6 | 811 819 704 E | AIR VENT | RIGHT | ||||
| F 85-E-900 001>> | 1 | ||||||
| 08/83-07/91 01C | SATIN BLACK | ||||||
| 7 | 811 819 701 C | AIR HOSE | LHD | 1 | |||
| -7 | 812 819 701 B | AIR HOSE | RHD | 1 | |||
| 8 | 811 819 747 A | SPRING CLIP | 2 | ||||
| - | 443 857 991 R | INTERMEDIATE LAYER | 2 | ||||
| - | 859 819 461 | FRESH AIR HOSE | 1 | SPORTQUATTRO | |||
