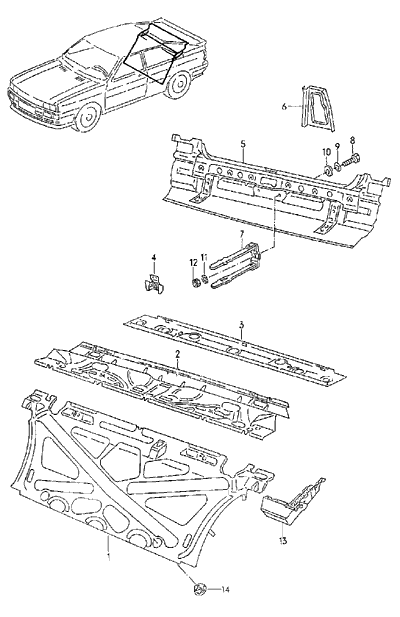

NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||
PARTITION | |||||||
REAR APRON | |||||||
1 | 857 813 112 | PARTITION | 1 | ||||
2 | 857 813 511 | CONNECTING PLATE | 1 | QUATTRO | |||
PARCEL SHELF - ROOF | |||||||
-2 | 859 813 511 | CONNECTING PLATE | 1 | SPORTQUATTRO | |||
PARCEL SHELF - ROOF | |||||||
- | N 904 376 01 | POP-RIVET | A3,2X8 | 2 | |||
3 | 855 813 115 | CONNECTING PLATE | 1 | ||||
PARCEL SHELF - ROOF | |||||||
4 | 855 813 597 | RETAINING PLATE | 2 | ||||
5 | 857 813 293 | REAR APRON | 1 | QUATTRO | |||
-5 | 855 813 301 | REAR APRON | 1 | SPORTQUATTRO | |||
6 | 855 813 443 | MOUNTING FOR TAILLIGHT | LEFT | 1 | |||
-6 | 855 813 444 | MOUNTING FOR TAILLIGHT | RIGHT | 1 | |||
7 | 823 809 373 | RETAINING STRAP | 2 | ||||
WARNING TRIANGLE | |||||||
8 | N 010 215 27 | SCREW, HEXAGONAL HEAD | M6X15 | 2 | |||
9 | N 011 524 23 | WASHER | A6,4X12,5X1,6 | 2 | |||
10 | 481 819 569 | WASHER | 2 | ||||
11 | N 012 127 2 | SHAKE-PROOF WASHER | A6,4 | 2 | |||
12 | N 011 006 24 | HEX. NUT | M6 | 2 | |||
13 | 855 877 127 | BRACKET FOR STEEL TILTING ROOF | LEFT | 1 | |||
IN LUGGAGE BOOT | |||||||
-13 | 855 877 128 | BRACKET FOR STEEL TILTING ROOF | RIGHT | 1 | |||
IN LUGGAGE BOOT | |||||||
14 | 893 803 583 A | COVER | 41,3 | 2 | |||
