| NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

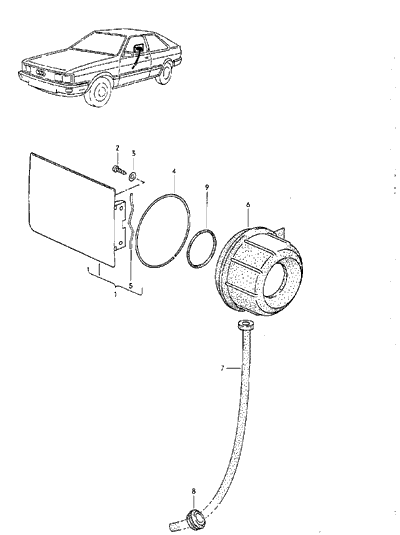

| FLAP FOR | |||||||
| FUEL FILLER | |||||||
| 1 | 855 809 905 B | FLAP FOR | 1 | QUATTRO | |||
| FUEL FILLER | |||||||
| -1 | 859 809 905 | FLAP FOR | 1 | SPORTQUATTRO | |||
| FUEL FILLER | |||||||
| 2 | N 013 968 1 | TAPPING SCREW, FILL. HD. | ST4,8X13-C | 2 | |||
| ALSO USE: | N 011 665 3 | 2 | |||||
| 3 | N 011 665 3 | WASHER | 5,3X15X1,6 | 2 | |||
| 4 | 811 809 929 | RING | 1 | ||||
| 5 | --- --- --- | NO LONGER AVAILABLE | |||||
| 6 | 855 809 933 | RETAINER | 1 | ||||
| 7 | 893 809 937 | HOSE | 1 | ||||
| 8 | 171 971 913 | GROMMET | 12,5 | 1 | |||
| 9 | N 028 205 1 | SEALING WASHER | 50X4B | 1 | |||
