NO |
CODE |
DESCRIPTION |
NOTE |
EA |
ADDITIONнн |
|
|
|

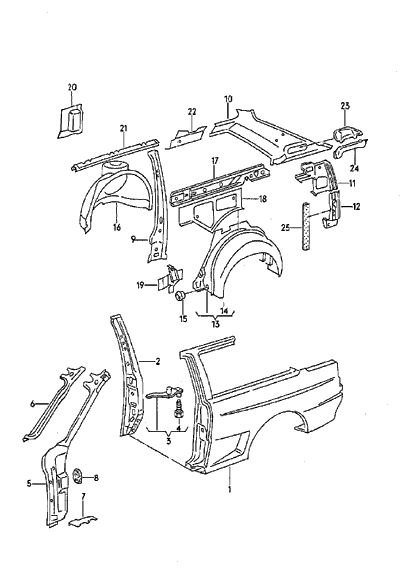

SIDE PANEL |
|
|
SPORTQUATTRO |
|
1 |
859
809 605 |
SIDE PANEL |
LEFT OUTER |
1 |
|
|
-1 |
859
809 606 |
SIDE PANEL |
RIGHT OUTER |
1 |
|
|
2 |
859
809 225 |
PILLAR B OUTER |
LEFT |
1 |
|
|
-2 |
859
809 226 |
PILLAR B OUTER |
RIGHT |
1 |
|
|
3 |
855
809 090 |
LEVER |
|
1 |
|
|
4 |
N 010 263 1 |
SCREW,
HEXAGONAL HEAD |
M4X6 |
1 |
|
|
5 |
855 809 201 C |
PILLAR A OUTER |
LEFT |
1 |
|
|
-5 |
855 809 202 C |
PILLAR A OUTER |
RIGHT |
1 |
|
|
6 |
811
809 207 |
PILLAR A INNER |
LEFT UPPER |
1 |
|
|
-6 |
811
809 208 |
PILLAR A INNER |
RIGHT UPPER |
1 |
|
|
7 |
321
805 269 |
COVER PLATE FOR |
|
2 |
|
|
|
|
WATER BOX |
|
|
|
|
8 |
443 831 469 A |
GROMMET |
50X30,5 |
2 |
|
|
9 |
811
809 227 |
PILLAR B INNER |
LEFT |
1 |
|
|
-9 |
811
809 228 |
PILLAR B INNER |
RIGHT |
1 |
|
|
10 |
859
809 243 |
PILLAR C, INNER |
LEFT |
1 |
|
|
-10 |
859
809 244 |
PILLAR C, INNER |
RIGHT |
1 |
|
|
11 |
857
809 349 |
SUPPORT PLATE |
LEFT |
1 |
|
|
-11 |
857
809 308 |
SUPPORT PLATE |
RIGHT |
1 |
|
|
12 |
813
809 019 |
RIP PLATE |
LEFT OUTER |
1 |
|
|
-12 |
813
809 442 |
RIP PLATE |
RIGHT OUTER |
1 |
|
|
13 |
859
809 409 |
WHEEL HOUSING |
RIGHT REAR |
1 |
|
|
|
|
|
OUTER |
|
|
|
-13 |
859
809 410 |
WHEEL HOUSING |
RIGHT REAR |
1 |
|
|
|
|
|
OUTER |
|
|
|
14 |
859
809 423 |
WHEEL HOUSING
EXTENSION |
LEFT REAR |
1 |
|
|
-14 |
859
809 424 |
WHEEL HOUSING
EXTENSION |
RIGHT REAR |
1 |
|
|
15 |
803 803 583 B |
PLUG |
40 |
2 |
|
|
16 |
857
809 851 |
WHEEL HOUSING |
LEFT REAR |
1 |
|
|
|
|
|
INNER |
|
|
|
-16 |
857
809 852 |
WHEEL HOUSING |
RIGHT REAR |
1 |
|
|
|
|
|
INNER |
|
|
|
17 |
811
809 563 |
RIP PLATE FOR
PILLAR B / C |
LEFT |
1 |
|
|
-17 |
811
809 564 |
RIP PLATE FOR
PILLAR B / C |
RIGHT |
1 |
|
|
18 |
859
809 637 |
REINFORCEMENT
FOR SIDE MEMBER |
|
1 |
|
|
-18 |
859
809 638 |
REINFORCEMENT
FOR SIDE MEMBER |
|
1 |
|
|
19 |
859
809 859 |
RIP PLATE FOR
PILLAR B - WHEEL |
LEFT |
1 |
|
|
|
|
HOUSING |
|
|
|
|
-19 |
859
809 860 |
RIP PLATE FOR
PILLAR B - WHEEL |
RIGHT |
1 |
|
|
|
|
HOUSING |
|
|
|
|
20 |
859
809 793 |
HINGE BRACKET |
RIGHT REAR |
1 |
|
|
21 |
811
817 965 |
ROOF FRAME |
LEFT INNER |
1 |
|
|
-21 |
812
817 966 |
ROOF FRAME |
RIGHT INNER |
1 |
|
|
22 |
859
817 949 |
INSERT PLATE |
LEFT |
1 |
|
|
-22 |
859
817 950 |
INSERT PLATE |
RIGHT |
1 |
|
|
23 |
855 809 711 A |
AIR DUCT |
LEFT |
1 |
|
|
-23 |
855 809 712 A |
AIR DUCT |
RIGHT |
1 |
|
|
24 |
855
809 319 |
BAFFLE PLATE |
LEFT |
1 |
|
|
-24 |
855
809 320 |
BAFFLE PLATE |
RIGHT |
1 |
|
|
25 |
444
819 649 |
PROTECTIVE
EDGING |
600MM |
1 |
|
|
|
|
|
|
|
|
