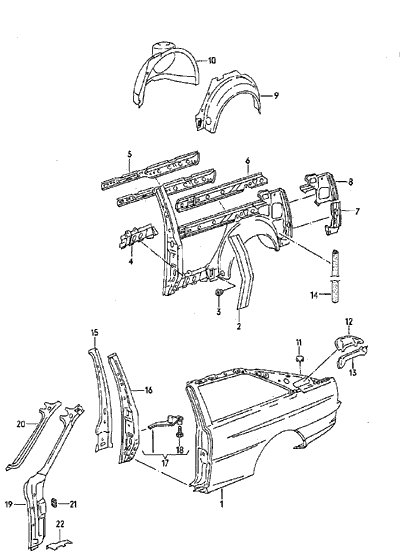

NO |
CODE |
DESCRIPTION |
NOTE |
EA |
ADDITIONнн |
|
|
|
SIDE PANEL |
|
|
QUATTRO/ |
|
|
|
|
|
|
QUATTRO:20V |
|
1 |
857 809 605 C |
SIDE PANEL |
LEFT OUTER |
1 |
|
|
-1 |
857 809 606 C |
SIDE PANEL |
RIGHT OUTER |
1 |
|
|
2 |
855
809 347 |
REINFORCEMENT
FOR SIDE PANEL |
OUTER |
2 |
|
|
3 |
803 803 583 B |
PLUG |
40 |
2 |
|
|
4 |
811
809 859 |
RIP PLATE FOR
PILLAR B - WHEEL |
LEFT |
1 |
|
|
|
|
HOUSING |
|
|
|
|
-4 |
811
809 860 |
RIP PLATE FOR
PILLAR B - WHEEL |
RIGHT |
1 |
|
|
|
|
HOUSING |
|
|
|
|
5 |
855
817 967 |
ROOF FRAME |
LEFT INNER |
1 |
|
|
-5 |
855
817 968 |
ROOF FRAME |
RIGHT INNER |
1 |
|
|
6 |
811
809 563 |
RIP PLATE FOR
PILLAR B / C |
LEFT |
1 |
|
|
-6 |
811
809 564 |
RIP PLATE FOR
PILLAR B / C |
RIGHT |
1 |
|
|
7 |
813
809 019 |
RIP PLATE |
LEFT OUTER |
1 |
|
|
|
|
ALSO USE: |
>>85-B-901438 |
|
|
|
|
|
|
811
809 377 |
1 |
|
|
|
|
|
811
813 587 |
1 |
|
|
-7 |
857
809 442 |
RIP PLATE |
RIGHT OUTER |
1 |
|
|
8 |
857
809 349 |
SUPPORT PLATE |
LEFT |
1 |
|
|
-8 |
857
809 308 |
SUPPORT PLATE |
RIGHT |
1 |
|
|
9 |
857 809 411 A |
WHEEL HOUSING |
LEFT REAR |
1 |
|
|
|
|
|
OUTER |
|
|
|
-9 |
857 809 412 A |
WHEEL HOUSING |
RIGHT REAR |
1 |
|
|
|
|
|
OUTER |
|
|
|
10 |
857
809 851 |
WHEEL HOUSING |
LEFT REAR |
1 |
|
|
|
|
|
INNER |
|
|
|
-10 |
857
809 852 |
WHEEL HOUSING |
RIGHT REAR |
1 |
|
|
|
|
|
INNER |
|
|
|
11 |
443
821 169 |
COVER |
|
1 |
|
|
|
07/80-07/91 01C |
SATIN BLACK |
|
1 |
|
|
12 |
855 809 711 A |
AIR DUCT |
LEFT |
1 |
|
|
-12 |
855 809 712 A |
AIR DUCT |
RIGHT |
1 |
|
|
13 |
855
809 319 |
BAFFLE PLATE |
LEFT |
1 |
|
|
-13 |
855
809 320 |
BAFFLE PLATE |
RIGHT |
1 |
|
|
14 |
444
819 649 |
PROTECTIVE
EDGING |
600MM |
1 |
|
|
15 |
855
809 223 |
PILLAR B INNER |
LEFT |
1 |
|
|
-15 |
855
809 224 |
PILLAR B INNER |
RIGHT |
1 |
|
|
16 |
855
809 221 |
PILLAR B OUTER |
LEFT LHD |
1 |
|
|
-16 |
855
809 222 |
PILLAR B OUTER |
RIGHT LHD |
1 |
|
|
-16 |
856
809 221 |
PILLAR B OUTER |
LEFT RHD |
1 |
|
|
-16 |
856
809 222 |
PILLAR B OUTER |
RIGHT RHD |
1 |
|
|
17 |
855
809 090 |
LEVER |
|
1 |
|
|
18 |
N 010 263 1 |
SCREW,
HEXAGONAL HEAD |
M4X6 |
1 |
|
|
19 |
855 809 201 C |
PILLAR A OUTER |
LEFT |
1 |
|
|
-19 |
855 809 202 C |
PILLAR A OUTER |
RIGHT |
1 |
|
|
20 |
855
809 207 |
PILLAR A INNER |
LEFT UPPER |
1 |
|
|
-20 |
855
809 208 |
PILLAR A INNER |
RIGHT UPPER |
1 |
|
|
21 |
443 831 469 A |
GROMMET |
50X30,5 |
2 |
|
|
22 |
321
805 269 |
COVER PLATE FOR |
|
2 |
|
|
|
|
WATER BOX |
|
|
|
|
|
|
|
|
|
|
