NO CODE DESCRIPTION NOTE EA ADDITIONнн

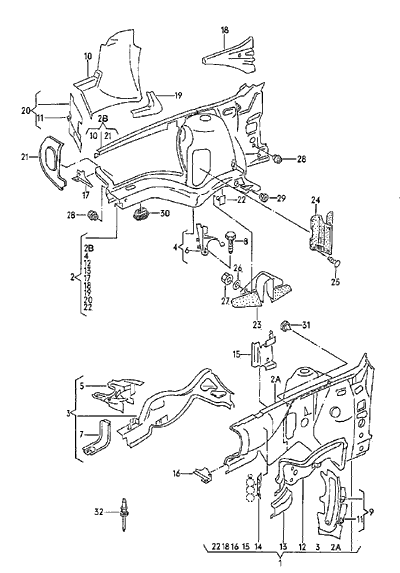

    WHEEL HOUSING FRONT   QUATTRO:20V
    F 85-L-000 001>>
1 857 809 101 F WHEEL HOUSING LEFT FRONT 1
      LHD
-1 857 809 101 G WHEEL HOUSING LEFT FRONT 1
      RHD
2 857 809 102 B WHEEL HOUSING RIGHT FRONT 1
      LHD
-2 857 809 102 C WHEEL HOUSING RIGHT FRONT 1
      RHD
2A 811 809 997 A SUB-PART - WHEEL HOUSING LEFT FRONT 1
2B 857 809 998 SUB-PART - WHEEL HOUSING RIGHT FRONT 1
3 857 803 109 G SIDE MEMBER LEFT 1
4 857 803 110 B SIDE MEMBER RIGHT 1
5 857 803 029 BRACKET FOR ENGINE LEFT 1
6 857 803 030 A BRACKET FOR ENGINE RIGHT 1
7 893 803 131 BRACKET FOR RADIATOR LEFT 1
8 857 199 765 A BOLT   2
9 857 809 025 GUSSET PLATE FOR WHEEL HOUSING LEFT FRONT 1
10 857 809 662 GUSSET PLATE FOR WHEEL HOUSING RIGHT FRONT 1
11 857 809 145 RETAINING CLAMP   3
12 857 809 685 REINFORCEM. FOR WHEEL HOUSING LEFT FRONT 1
-12 857 809 686 REINFORCEM. FOR WHEEL HOUSING RIGHT FRONT 1
13 321 809 689 A REINFORCEMENT LEFT 1
-13 857 803 531 REINFORCEMENT RIGHT 1
14 823 809 163 BRACKET FOR   1
    VACUUM TANK
15 811 809 987 BRACKET FOR FLUID   1
    CONTAINER
16 857 809 179 A RETAINING CLAMP LEFT 1
    FOR FENDER
17 857 809 180 A RETAINING CLAMP RIGHT 1
    FOR FENDER
-18 811 809 109 A REINFORCEMENT PLATE LEFT 1
18 857 809 110 REINFORCEMENT PLATE RIGHT 1
19 857 809 170 ANGLED PIPE   1
20 857 809 702 FILLER PLATE   1
21 857 809 706 SUPPORT PART   1
22 811 804 113 RETAINING PLATE   4
-23 811 863 187 COVER FOR JOINT SHAFT LEFT 1
23 811 863 188 COVER FOR JOINT SHAFT RIGHT 1
-24 823 863 187 COVER FOR ENGINE COMPARTMENT LEFT 1
24 893 863 188 B COVER FOR ENGINE COMPARTMENT RIGHT 1
25 823 863 203 CLIP   X
  08/89-07/91 01C SATIN BLACK
26 N 011 666 15 WASHER 6,4X18X1,6 4
27 N 038 602 1 NUT,THREAD CUTTING 4X5,75 4
28 803 803 583 PLUG 30 X
29 803 803 583 B PLUG 40 X
30 811 803 593 PLUG   2
31 N 020 025 1 PLUG A12X1 1
32 431 805 121 A T-BOLT   X
- 171 805 445 NUT 6,5 X
