NO |
CODE |
DESCRIPTION |
NOTE |
EA |
ADDITIONнн |
|
|
|

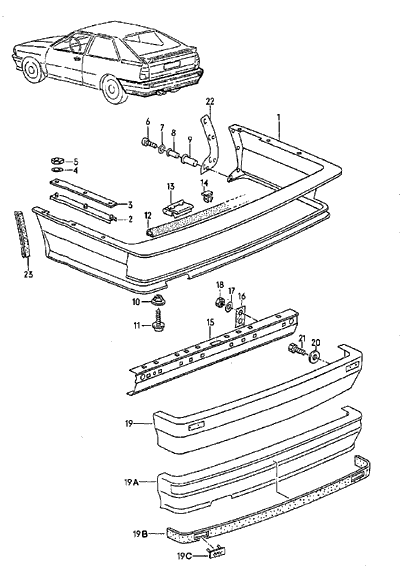

BUMPER |
REAR |
|
|
|
1 |
857
807 033 |
TRIM FOR REAR
CROSS PANEL |
|
1 |
|
|
|
|
(PRIMED) |
|
|
|
|
|
|
IF NECESSARY
PAINT IN COLOR |
|
|
|
|
|
|
OF VEHICLE |
|
|
|
|
2 |
857
807 863 |
RETAINING STRIP |
LEFT |
1 |
|
|
-2 |
857
807 864 |
RETAINING STRIP |
RIGHT |
1 |
|
|
3 |
857
807 867 |
RETAINING STRIP |
|
2 |
|
|
4 |
N 011 524 23 |
WASHER |
A6,4X12,5X1,6 |
6 |
|
|
5 |
N 011 006 24 |
HEX. NUT |
M6 |
6 |
|
|
6 |
N 014 131 3 |
FILLISTER HD.
SCREW |
AM5X15 |
8 |
|
|
7 |
N 011 524 23 |
WASHER |
A6,4X12,5X1,6 |
8 |
|
|
8 |
N 030 355 1 |
RIVETTED CAP
NUT |
AM5 |
8 |
|
|
9 |
431
809 100 |
CAP |
|
8 |
|
|
10 |
431 807 300 D |
EXPANDING NUT |
|
5 |
|
|
11 |
N 013 948 1 |
TAPPING SCREW,
FILL. HD. |
B5,5X25 |
5 |
|
|
|
|
ALSO USE: |
N 011 540 2 |
X |
|
|
- |
N 011 540 2 |
WASHER |
A5,5X12,5X1,6 |
X |
|
|
12 |
857 807 877 A |
STRIP |
|
2 |
|
|
13 |
431 807 270 C |
CLIP |
|
|
|
|
|
|
F >>
85-C-900 330 |
|
5 |
|
|
14 |
803
831 719 |
CLAMP |
|
|
|
|
|
|
F 85-C-900
331>> |
|
3 |
|
|
15 |
855
807 309 |
BUMPER |
REAR |
1 |
|
|
16 |
4A0 807 239 B |
INTERMEDIATE
LAYER |
|
2 |
|
|
17 |
N 011 525 13 |
WASHER |
A8,4 |
4 |
|
|
18 |
N 011 008 8 |
HEX. NUT |
M8 |
4 |
|
|
19 |
857
807 324 |
COVER FOR
BUMPER |
|
1 |
|
|
|
|
PRIMED |
|
|
|
|
|
|
IF NECESSARY
PAINT IN COLOR |
|
|
|
|
|
|
OF VEHICLE |
|
|
|
|
19A |
859
807 305 |
COVER FOR
BUMPER |
|
1 |
SPORTQUATTRO |
|
|
|
IF NECESSARY
PAINT IN COLOR |
|
|
|
|
|
|
OF VEHICLE |
|
|
|
|
19B |
859
807 223 |
RUBBER MOLDING |
|
1 |
SPORTQUATTRO |
|
19C |
|
SEE
ILLUSTRATION: |
107 |
|
|
|
20 |
N 904 772 01 |
WASHER |
B8,4X33X2 |
6 |
|
|
21 |
N 010 237 6 |
SCREW,
HEXAGONAL HEAD |
M8X12 |
6 |
|
|
22 |
--- --- --- |
NO LONGER
AVAILABLE |
|
|
|
|
23 |
859
813 949 |
BEADING |
400MM |
2 |
SPORTQUATTRO |
|
- |
DH 009 100 03 |
1K WINDOW
ADHESIVE |
110ML |
X |
|
|
- |
D 009 200 02 |
PRIMER FOR
GLASS AND PAINT |
10ML |
X |
|
|
|
|
VW-NR. AMV 181
200 |
|
|
|
|
|
|
ADHESIVES AND
SEALING COMPOUND |
|
|
|
|
- |
D 009 600 |
PRIMER FOR
PLASTIC |
20ML |
X |
|
|
|
|
|
|
|
|
