NO |
CODE |
DESCRIPTION |
NOTE |
EA |
ADDITIONнн |
|
|
|

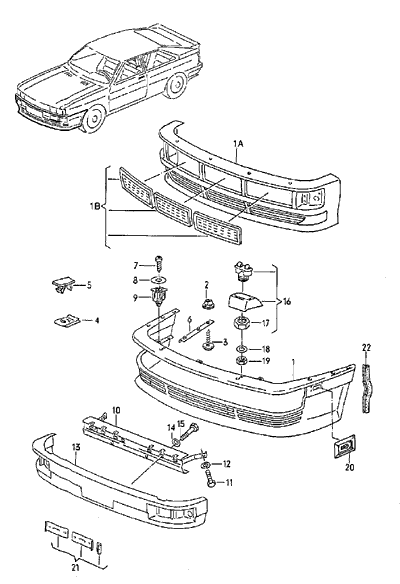

BUMPER |
FRONT |
|
|
|
1 |
857 807 031 A |
SPOILER, PRIMED |
|
1 |
QUATTRO |
|
|
|
IF NECESSARY
PAINT IN COLOR |
|
|
|
|
|
|
OF VEHICLE |
|
|
|
|
1A |
859
807 075 |
COVER |
FRONT |
1 |
SPORTQUATTRO |
|
|
|
IF NECESSARY
PAINT IN COLOR |
|
|
|
|
|
|
OF VEHICLE |
|
|
|
|
1B |
|
SEE
ILLUSTRATION: |
okt.83 |
|
|
|
2 |
431 807 300 D |
EXPANDING NUT |
|
14 |
|
|
3 |
N 013 948 1 |
TAPPING SCREW,
FILL. HD. |
B5,5X25 |
14 |
|
|
|
|
ALSO USE: |
N 011 540 2 |
X |
|
|
- |
N 011 540 2 |
WASHER |
A5,5X12,5X1,6 |
X |
|
|
4 |
431 807 270 C |
CLIP |
|
|
|
|
|
|
F >>
85-C-900 330 |
|
5 |
|
|
5 |
803
831 719 |
CLAMP |
|
|
|
|
|
|
F 85-C-900
331>> |
|
3 |
|
|
6 |
857
807 861 |
ATTACHMENT
STRIP |
LEFT |
1 |
|
|
-6 |
857
807 862 |
ATTACHMENT
STRIP |
RIGHT |
1 |
|
|
7 |
N 013 964 4 |
TAPPING SCREW,
FILL. HD. |
B4,2X16 |
3 |
|
|
8 |
N 011 665 3 |
WASHER |
5,3X15X1,6 |
3 |
|
|
9 |
811 807 577 C |
SPEED NUT |
|
3 |
|
|
10 |
857
807 109 |
BUMPER |
|
1 |
QUATTRO |
|
11 |
N 010 251 7 |
SCREW,
HEXAGONAL HEAD |
M10X18 |
2 |
|
|
12 |
N 904 769 01 |
WASHER |
B10,5X30X3 |
2 |
|
|
13 |
857
807 230 |
COVER (PRIMED) |
|
1 |
QUATTRO |
|
|
|
IF NECESSARY
PAINT IN COLOR |
|
|
|
|
|
|
OF VEHICLE |
|
|
|
|
14 |
N 904 772 01 |
WASHER |
B8,4X33X2 |
6 |
|
|
15 |
N 010 237 6 |
SCREW,
HEXAGONAL HEAD |
M8X12 |
6 |
|
|
16 |
857
807 155 |
JET CARRIER
WITH JET |
|
|
|
|
|
|
F >>
85-C-902 000 |
|
2 |
|
|
-16 |
857 807 155 A |
JET CARRIER
WITH JET |
LEFT |
|
|
|
|
|
F 85-D-900
582>> |
|
1 |
|
|
-16 |
857 807 156 A |
JET CARRIER
WITH JET |
RIGHT |
|
|
|
|
|
F 85-D-900
001>> |
|
1 |
|
|
17 |
857
807 280 |
HEX. NUT |
|
|
|
|
|
|
F >>
85-C-902 000 |
|
2 |
|
|
18 |
N 011 524 23 |
WASHER |
A6,4X12,5X1,6 |
|
|
|
|
|
F 85-D-900
001>> |
|
4 |
|
|
19 |
N 011 006 24 |
HEX. NUT |
M6 |
|
|
|
|
|
F 85-D-900
001>> |
|
4 |
|
|
20 |
857
807 027 |
FRAME |
|
|
|
|
|
|
F >>
85-C-902 000 |
|
2 |
|
|
|
|
IF NECESSARY
PAINT IN COLOR |
|
|
|
|
|
|
OF VEHICLE |
|
|
|
|
21 |
855
807 363 |
REINFORCEMENT
PLATE FOR |
|
1 |
|
|
|
|
LICENCE PLATE |
|
|
|
|
22 |
859
813 949 |
BEADING |
400MM |
2 |
SPORTQUATTRO |
|
|
|
|
|
|
|
