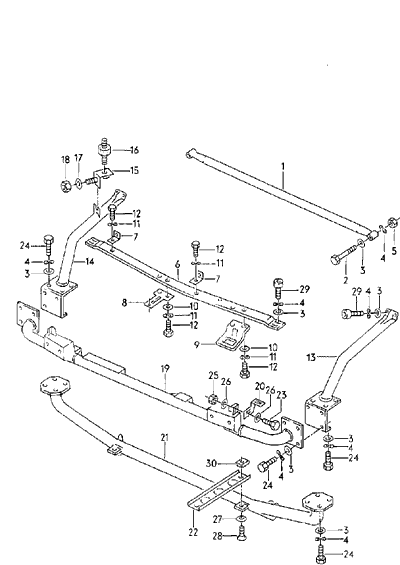

BODY FRONT
SECTION |
|
|
SPORTQUATTRO |
|
1 |
859
805 141 |
CONNECTING PIPE |
|
1 |
|
|
2 |
N 010 360 9 |
SCREW,
HEXAGONAL HEAD |
M8X60 |
1 |
|
|
3 |
N 011 525 13 |
WASHER |
A8,4 |
X |
|
|
4 |
N 012 229 3 |
SPRING WASHER |
A8X15X0,5 |
X |
|
|
5 |
N 011 008 2 |
HEX. NUT |
M8 |
2 |
|
|
6 |
859
805 591 |
LOCK CARRIER |
|
1 |
|
|
7 |
859
805 593 |
RETAINING
BRACKET |
|
2 |
|
|
8 |
859
805 595 |
RETAINING PLATE |
|
1 |
|
|
9 |
859
805 597 |
GUIDE PLATE |
|
1 |
|
|
10 |
N 011 666 15 |
WASHER |
6,4X18X1,6 |
4 |
|
|
11 |
N 012 226 5 |
SPRING WASHER |
B6 |
4 |
|
|
12 |
N 010 217 10 |
SCREW,
HEXAGONAL HEAD |
M6X20 |
4 |
|
|
13 |
859
805 855 |
CONNECTING PIPE |
LEFT |
1 |
|
|
14 |
859
805 856 |
CONNECTING PIPE |
RIGHT |
1 |
|
|
15 |
|
SEE
ILLUSTRATION: |
16-50 |
|
|
|
16 |
|
SEE
ILLUSTRATION: |
16-50 |
|
|
|
17 |
|
SEE
ILLUSTRATION: |
16-50 |
|
|
|
18 |
|
SEE
ILLUSTRATION: |
16-50 |
|
|
|
19 |
859
805 851 |
CROSS TUBE |
UPPER |
1 |
|
|
20 |
859
805 629 |
BRACKET |
LEFT |
1 |
|
|
-20 |
859
805 630 |
BRACKET |
RIGHT |
1 |
|
|
21 |
859
805 853 |
CROSS TUBE |
LOWER |
1 |
|
|
22 |
859
805 633 |
PACKING PLATE |
|
2 |
|
|
23 |
N 010 215 27 |
SCREW,
HEXAGONAL HEAD |
M6X15 |
2 |
|
|
24 |
N 010 240 22 |
BOLT, HEXAGON
HEAD |
M8X20MK |
X |
|
|
|
|
SELF-LOCKING |
|
|
|
|
25 |
N 011 006 24 |
HEX. NUT |
M6 |
2 |
|
|
26 |
N 011 524 23 |
WASHER |
A6,4X12,5X1,6 |
4 |
|
|
27 |
N 011 665 3 |
WASHER |
5,3X15X1,6 |
2 |
|
|
28 |
N 014 131 3 |
FILLISTER HD.
SCREW |
AM5X15 |
2 |
|
|
29 |
N 014 779 1 |
BOLT, WITH HEX.
SOCKET |
M8X20 |
8 |
|
|
|
|
HD. |
|
|
|
|
|
|
|
|
|
|
