| NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

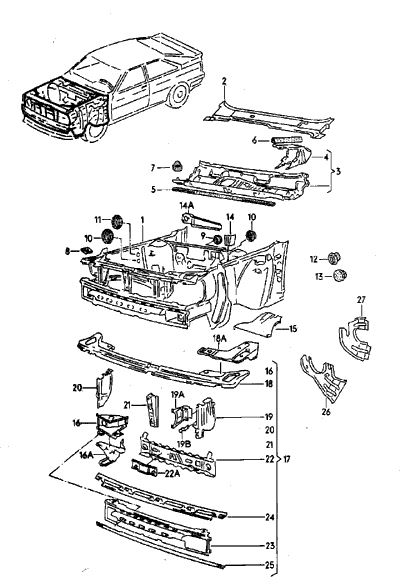

| BODY FRONT SECTION | |||||||
| 1 | 859 805 021 | BODY FRONT SECTION | 1 | SPORTQUATTRO | |||
| 2 | 811 805 097 | COWL | LHD | 1 | |||
| -2 | 812 805 097 | COWL | RHD | 1 | |||
| 3 | 811 805 261 F | WATER BOX | |||||
| F >> 85-C-902 000 | LHD | 1 | |||||
| -3 | 811 805 261 K | WATER BOX | |||||
| F 85-D-900 001>> | LHD | 1 | |||||
| -3 | 812 805 261 H | WATER BOX | |||||
| F 85-D-900 615>> 85-D-902 500 | RHD | 1 | |||||
| -3 | 812 805 261 L | WATER BOX | |||||
| F 85-E-900 001>> | RHD | 1 | |||||
| 4 | 811 805 373 | BRACKET FOR STEERING COLUMN | LHD | 1 | |||
| 5 | 811 805 349 | GASKET FOR AIR DUCT | 1 | ||||
| 6 | 444 819 649 | PROTECTIVE EDGING | 600MM | 1 | |||
| 7 | N 020 027 1 | PLUG | A15X1 | 2 | |||
| 8 | 171 805 445 | NUT | 5 | ||||
| 9 | 111 971 911 A | GROMMET | 16,5 | 1 | |||
| 10 | 191 971 928 | GROMMET | 27 | 1 | |||
| 11 | 211 611 849 | PLUG | 1 | ||||
| 12 | 283 829 243 | PLUG | 20X14 | 1 | |||
| RHD | |||||||
| -12 | 443 803 583 B | GROMMET | 32,5MM | 1 | |||
| LHD | |||||||
| -12 | 431 971 908 | GROMMET | 23,5 | 2 | |||
| RHD | |||||||
| -12 | 803 803 583 | PLUG | 30 | 1 | |||
| RHD | |||||||
| 13 | 803 803 583 B | PLUG | 40 | 1 | |||
| RHD | |||||||
| 14 | 803 809 117 | BRACKET FOR FLUID | |||||
| CONTAINER | |||||||
| F >> 85-D-902 500 | 1 | ||||||
| -14 | 811 809 987 | BRACKET FOR FLUID | |||||
| CONTAINER | |||||||
| F 85-E-900 001>> | 1 | ||||||
| 14A | 812 805 485 | SUPPORT | RHD | 1 | |||
| FOR BRAKE SERVO | |||||||
| 15 | 823 805 501 | GUSSET PLATE | LEFT | 1 | |||
| -15 | 823 805 502 A | GUSSET PLATE | RIGHT | 1 | |||
| -16 | 857 803 321 B | CORNER REINFORCEMENT | LEFT FRONT | 1 | QUATTRO | ||
| -16 | 859 803 321 | CORNER REINFORCEMENT | LEFT FRONT | 1 | SPORTQUATTRO | ||
| 16 | 857 803 322 A | CORNER REINFORCEMENT | RIGHT FRONT | 1 | QUATTRO | ||
| -16 | 859 803 322 | CORNER REINFORCEMENT | RIGHT FRONT | 1 | SPORTQUATTRO | ||
| 17 | 857 805 571 D | FRONT APRON | 1 | ||||
| 18 | 811 805 591 C | LOCK CARRIER | |||||
| F >> 85-E-900 422 | 1 | ||||||
| -18 | 857 805 591 B | LOCK CARRIER | 1 | ||||
| F 85-E-900 423>> | 1 | ||||||
| 18A | 859 803 775 | CORNER PANEL | LEFT | 1 | SPORTQUATTRO | ||
| (18A) | 859 803 776 | CORNER PANEL | RIGHT | 1 | SPORTQUATTRO | ||
| 19 | 811 805 603 | SUPPORT | LEFT | ||||
| F >> 85-E-900 422 | 1 | QUATTRO | |||||
| -19 | 857 805 603 | SUPPORT FOR FRONT APRON | LEFT | ||||
| F 85-E-900 423>> | 1 | QUATTRO | |||||
| -19 | 859 805 603 | SUPPORT | LEFT | 1 | SPORTQUATTRO | ||
| 19A | 859 805 627 | BRACKET | LEFT | 1 | SPORTQUATTRO | ||
| (19A) | 859 805 628 | BRACKET | RIGHT | 1 | SPORTQUATTRO | ||
| 19B | 859 823 549 | GUIDE | 1 | SPORTQUATTRO | |||
| 20 | 811 805 604 C | SUPPORT | RIGHT | ||||
| F >> 85-E-900 422 | 1 | QUATTRO | |||||
| -20 | 857 805 604 A | SUPPORT FOR FRONT APRON | RIGHT | ||||
| F 85-E-900 423>> | 1 | QUATTRO | |||||
| -20 | 859 805 604 | SUPPORT | RIGHT | 1 | SPORTQUATTRO | ||
| 21 | 811 805 567 | SUPPORT | CENTER | ||||
| F >> 85-E-900 422 | 1 | ||||||
| -21 | 857 805 567 | SUPPORT | CENTER | ||||
| F 85-E-900 423>> | 1 | ||||||
| 22 | 857 803 143 | CROSS MEMBER | LOWER | 1 | |||
| 22A | 855 803 221 | REINFORCEMENT | 1 | ||||
| 23 | 857 805 577 A | FRONT APRON | LOWER | ||||
| F >> 85-H-902 400 | 1 | ||||||
| -23 | 857 805 581 | FRONT APRON | LOWER | ||||
| F 85-J-900 001>> | 1 | ||||||
| 24 | 857 805 867 A | RETAINING CLAMP | 1 | ||||
| 25 | 857 805 891 | RETAINING CLAMP | 1 | ||||
| 26 | 893 804 319 A | SUPPORT PLATE | FRONT | 1 | |||
| HYDRAULIC PUMP | |||||||
| 27 | 893 804 324 A | SUPPORT PLATE | REAR | 1 | |||
| HYDRAULIC PUMP | |||||||
| - | 855 809 359 | BRACKET | RIGHT FRONT | 1 | |||
| AIR CLEANER | |||||||
