| NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

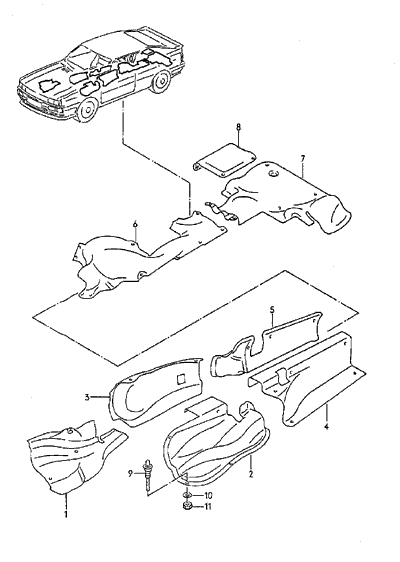

| HEAT INSULATION FOR FLOOR | QUATTRO:20V | ||||||
| F 85-L-000 001>> | |||||||
| 1 | 857 804 161 B | HEAT INSULATING | 1 | ||||
| SIDE MEMBER | |||||||
| - | 857 804 162 | HEAT INSULATING | 50X2700MM | 1 | |||
| (ADHESIVE) | OD.2 IN X 3YD | ||||||
| SUB-FRAME | |||||||
| 2 | 857 804 165 B | HEAT INSULATING | LEFT | 1 | |||
| FOR CATALYST | |||||||
| 3 | 857 804 166 A | HEAT INSULATING | RIGHT | 1 | |||
| FOR CATALYST | |||||||
| 4 | 857 804 167 B | HEAT SHIELD FOR TUNNEL | LEFT | 1 | |||
| 5 | 857 804 168 A | HEAT SHIELD FOR TUNNEL | RIGHT | 1 | |||
| 6 | 857 804 169 A | HEAT INSULATING | 1 | ||||
| 7 | 857 804 171 A | HEAT INSULATING | 1 | ||||
| 8 | 857 804 173 A | HEAT INSULATING | 1 | ||||
| 9 | N 902 614 01 | POP-RIVET | A4,8X6,5X22 | X | |||
| 10 | N 011 666 15 | WASHER | 6,4X18X1,6 | X | |||
| 11 | N 038 602 1 | NUT,THREAD CUTTING | 4X5,75 | X | |||
