| NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

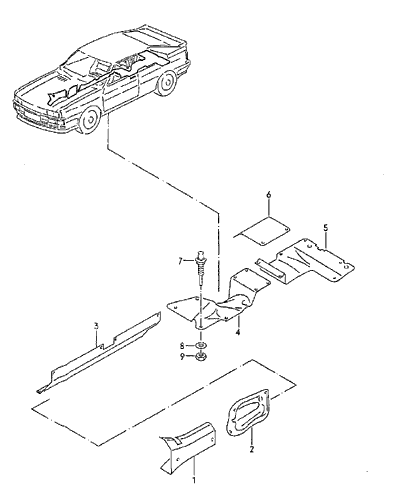

| HEAT INSULATION FOR FLOOR | QUATTRO/ | ||||||
| F >> 85-K-020 000 | SPORTQUATTRO | ||||||
| 1 | 857 804 161 | HEAT INSULATING | 1 | QUATTRO | |||
| SIDE MEMBER | |||||||
| - | 857 804 162 | HEAT INSULATING | 50X2700MM | 1 | |||
| (ADHESIVE) | OD.2 IN X 3YD | ||||||
| SUB-FRAME | |||||||
| 3 | 857 804 167 | HEAT INSULATION FOR FLOOR | 1 | ||||
| TUNNEL | |||||||
| -3 | 859 804 167 | HEAT SHIELD FOR TUNNEL | RIGHT | 1 | SPORTQUATTRO | ||
| -3 | 859 804 168 | HEAT SHIELD FOR TUNNEL | LEFT | 1 | SPORTQUATTRO | ||
| 4 | 857 804 169 | HEAT INSULATING | 1 | ||||
| -4 | 859 804 169 | HEAT INSULATING | 1 | SPORTQUATTRO | |||
| -5 | 859 804 170 | HEAT INSULATING | 1 | SPORTQUATTRO | |||
| 5 | 857 804 171 | HEAT INSULATING | 1 | ||||
| 6 | 857 804 173 A | HEAT INSULATING | 1 | ||||
| 7 | N 902 614 01 | POP-RIVET | A4,8X6,5X22 | X | |||
| 8 | N 011 666 15 | WASHER | 6,4X18X1,6 | X | |||
| 9 | N 038 602 1 | NUT,THREAD CUTTING | 4X5,75 | X | |||
