NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

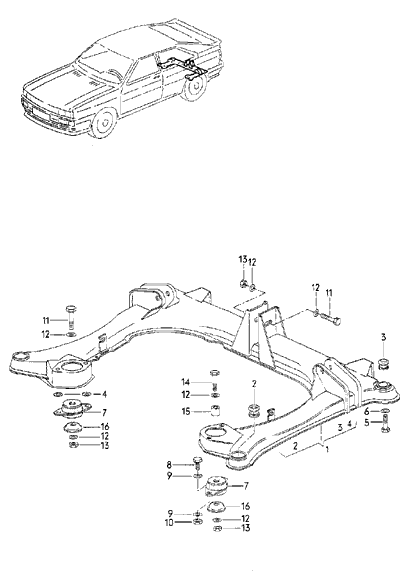

SUB FRAME | REAR | ||||||
F >> 85-H-902 400 | |||||||
-1 | 857 505 235 | SUB FRAME | |||||
F >> 85-C-902 000 | 1 | QUATTRO | |||||
-1 | 895 505 235 F | SUB FRAME | REAR | ||||
F 85-D-900 001>> | 1 | ||||||
-1 | 859 505 235 | SUB-FRAME | 1 | SPORTQUATTRO | |||
2 | 857 199 419 C | RUBBER MOUNTING | FRONT | 2 | QUATTRO | ||
-2 | 859 199 419 | RUBBER MOUNTING | FRONT | 2 | SPORTQUATTRO | ||
3 | 857 199 415 B | RUBBER MOUNTING | 2 | QUATTRO | |||
-3 | 859 199 415 | RUBBER MOUNTING | REAR | 2 | SPORTQUATTRO | ||
4 | 857 525 293 | WASHER | 2 | ||||
5 | N 905 569 02 | SCREW, HEXAGONAL HEAD | M10X75 | 4 | |||
-5 | 859 199 441 A | SCREW, HEXAGONAL HEAD | M12X1,5X70 | 4 | SPORTQUATTRO | ||
6 | 823 199 347 | WASHER | 4 | QUATTRO | |||
-6 | 859 199 347 | WASHER | 4 | SPORTQUATTRO | |||
7 | 857 599 431 | BONDED RUBBER MOUNTING | 2 | QUATTRO | |||
-7 | 859 399 151 | BONDED RUBBER MOUNTING WITH | 2 | SPORTQUATTRO | |||
STOP SHELL | |||||||
8 | N 010 240 16 | SCREW, HEXAGONAL HEAD | M8X20 | 4 | |||
9 | N 011 525 13 | WASHER | A8,4 | 8 | |||
10 | N 022 146 4 | HEX. NUT, SELF-LOCKING | VM8 | 4 | |||
11 | N 010 472 6 | SCREW, HEXAGONAL HEAD | M10X85 | 2 | QUATTRO | ||
-11 | N 010 484 1 | SCREW, HEXAGONAL HEAD | M10X115 | 1 | SPORTQUATTRO | ||
- | 859 199 381 | BONDED RUBBER MOUNTING | 1 | SPORTQUATTRO | |||
12 | N 011 546 1 | WASHER | A11X24X3 | 4 | |||
13 | N 102 951 01 | HEX. NUT, SELF-LOCKING | M10 | 3 | |||
14 | N 010 500 2 | SCREW, HEXAGONAL HEAD | M10X110 | 1 | |||
-14 | N 101 312 02 | SCREW, HEXAGONAL HEAD | M10X105X32 | 1 | SPORTQUATTRO | ||
15 | 857 511 431 | SPACER BUSH | 1 | QUATTRO | |||
-15 | 859 511 431 | SPACER BUSH | 1 | SPORTQUATTRO | |||
16 | 431 399 291 | STOP | 2 | ||||
- | N 022 148 1 | HEX. NUT, SELF-LOCKING | M6 | 1 | |||
- | N 011 524 23 | WASHER | A6,4X12,5X1,6 | 2 | SPORTQUATTRO | ||
- | 431 609 735 | BRACKET | LEFT | 2 | SPORTQUATTRO | ||
- | N 010 293 5 | SCREW, HEXAGONAL HEAD | M8X16 | 4 | SPORTQUATTRO | ||
- | N 011 525 13 | WASHER | A8,4 | 4 | SPORTQUATTRO | ||
- | N 102 951 01 | HEX. NUT, SELF-LOCKING | M10 | 2 | SPORTQUATTRO | ||
- | N 010 215 27 | SCREW, HEXAGONAL HEAD | M6X15 | 2 | SPORTQUATTRO | ||
- | N 011 183 11 | HEX. NUT, SELF-LOCKING | M6 | 2 | SPORTQUATTRO | ||
- | 859 399 199 | HOSE | RIGHT | 1 | SPORTQUATTRO |
