NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

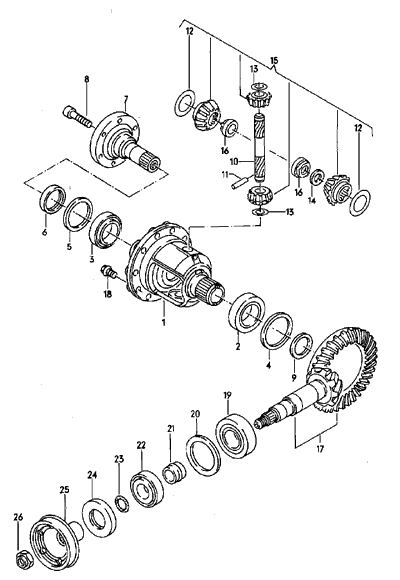

DIFFERENTIAL | |||||||
GEAR SET | |||||||
G 08 05 7>> | REAR | ALZ | |||||
1 | 017 525 121 A | DIFFERENTIAL HOUSING | 1 | ||||
2 | 5 409 123 | TAPER ROLLER BEARING | 45,2X77,8X19,8 | 1 | |||
3 | 16 409 123 | TAPER ROLLER BEARING | 41,2X73,4X19,5 | 1 | |||
4 | 5 409 381 | ADJUSTING WASHER | 0,15 | X | |||
-4 | 005 409 381 A | ADJUSTING WASHER | 0,2 | X | |||
-4 | 005 409 381 B | ADJUSTING WASHER | 0,25 | X | |||
-4 | 005 409 381 C | ADJUSTING WASHER | 0,55 | X | |||
-4 | 005 409 381 D | ADJUSTING WASHER | 0,6 | X | |||
-4 | 005 409 381 E | ADJUSTING WASHER | 0,65 | X | |||
-4 | 005 409 381 F | ADJUSTING WASHER | 0,8 | X | |||
-4 | 005 409 381 G | ADJUSTING WASHER | 1,35 | X | |||
-4 | 005 409 381 H | ADJUSTING WASHER | 1,5 | X | |||
-4 | 005 409 381 J | ADJUSTING WASHER | 1,65 | X | |||
5 | 5 409 385 | WASHER | 0,15 | X | |||
-5 | 005 409 385 A | WASHER | 0,2 | X | |||
-5 | 005 409 385 B | WASHER | 0,25 | X | |||
-5 | 005 409 385 C | WASHER | 0,5 | X | |||
-5 | 005 409 385 D | WASHER | 0,8 | X | |||
-5 | 005 409 385 E | WASHER | 1 | X | |||
-5 | 005 409 385 F | WASHER | 1,5 | X | |||
6 | 016 409 399 B | OIL SEAL | 45X60X8 | 1 | |||
-6 | 017 525 400 A | OIL SEAL | LEFT | 1 | |||
7 | 017 525 281 A | FLANGE SHAFT | 108 | 1 | |||
LEFT | |||||||
-7 | 16 409 355 | FLANGE SHAFT | 108 | 2 | |||
RIGHT | |||||||
8 | 88 409 359 | SCREW | M8X93,6 | 2 | |||
9 | 5 409 737 | WASHER | 0,3 | X | |||
-9 | 005 409 737 A | WASHER | 0,6 | X | |||
-9 | 005 409 737 B | WASHER | 0,9 | X | |||
10 | 5 409 177 | SHAFT - DIFFERENTIAL PINION | 1 | ||||
11 | N 100 726 01 | PIN | 5X36 | 1 | |||
12 | 11 519 215 | THRUST WASHER | 0,5 | X | |||
-12 | 88 409 249 | THRUST WASHER | 0,6 | X | |||
-12 | 088 409 249 A | THRUST WASHER | 0,7 | X | |||
-12 | 088 409 249 B | THRUST WASHER | 0,8 | X | |||
-12 | 088 409 249 C | THRUST WASHER | 0,9 | X | |||
-12 | 088 409 249 D | THRUST WASHER | 1 | X | |||
13 | *091 517 189 | THRUST WASHER | 2 | ||||
14 | 183 525 293 | WASHER | 0,3 | X | |||
-14 | 183 525 293 A | WASHER | 0,6 | X | |||
-14 | 183 525 293 B | WASHER | 0,9 | X | |||
15 | 016 498 081 A | 1 SET OF DIFFERENTIAL PINIONS | 1 | ||||
16 | 87 409 373 | FLANGE SHAFT NUT | 2 | ||||
17 | 857 525 143 | PINION AND CROWN WHEEL | |||||
G >> 01 01 9* | 1 | ||||||
-17 | 017 525 143 M | PINION AND CROWN WHEEL | sep.35 | ||||
G 02 01 9>>* | 1 | ||||||
18 | 088 409 135 A | SCREW, HEXAGONAL HEAD | M10X1X18 | 10 | |||
19 | 183 525 261 | ROLLER BEARING | 1 | ||||
20 | 183 525 231 | ADJUSTING WASHER | 0,95 | X | |||
-20 | 183 525 231 A | ADJUSTING WASHER | 1 | X | |||
-20 | 183 525 231 B | ADJUSTING WASHER | 1,05 | X | |||
-20 | 183 525 231 C | ADJUSTING WASHER | 1,1 | X | |||
-20 | 183 525 231 D | ADJUSTING WASHER | 1,15 | X | |||
-20 | 183 525 231 E | ADJUSTING WASHER | 1,2 | X | |||
-20 | 183 525 231 F | ADJUSTING WASHER | 1,25 | X | |||
-20 | 183 525 231 G | ADJUSTING WASHER | 1,3 | X | |||
-20 | 183 525 231 H | ADJUSTING WASHER | 1,35 | X | |||
-20 | 183 525 231 J | ADJUSTING WASHER | 1,4 | X | |||
-20 | 183 525 231 K | ADJUSTING WASHER | 1,45 | X | |||
-20 | 183 525 231 L | ADJUSTING WASHER | 1,5 | X | |||
-20 | 183 525 231 M | ADJUSTING WASHER | 1,55 | X | |||
21 | 183 525 267 | SPACER SLEEVE | 1 | ||||
22 | 087 409 551 A | TAPER ROLLER BEARING | 1 | ||||
23 | N 900 682 01 | SEALING WASHER | 25X4N | 1 | |||
24 | 857 525 275 | SEAL | 1 | ||||
25 | 17 525 385 | FLANGE | |||||
G >> 01 01 9* | 1 | ||||||
-25 | 017 525 385 B | FLANGE | |||||
G 02 01 9>>* | 1 | ||||||
26 | 14 311 379 | HEX. NUT | M24X1,5 | 1 |
