NO CODE DESCRIPTION NOTE EA ADDITIONнн

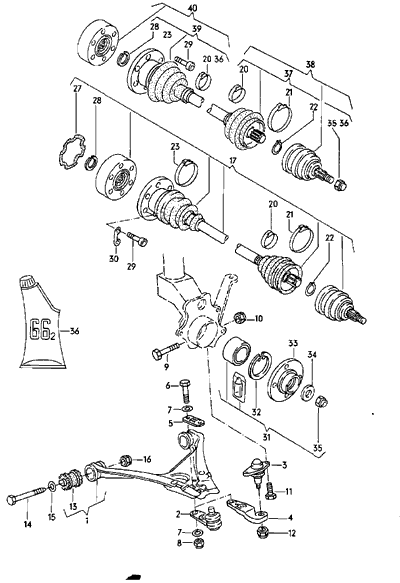

    TRACK CONTROL ARM REAR
    DRIVE SHAFT
-1 857 407 153 B TRACK CONTROL ARM
    F >> 85-C-902 000   2 QUATTRO
    ALSO USE: 811 407 181 4
1 893 407 147 C TRACK CONTROL ARM
    F 85-D-900 001>> 85-H-901 000* LEFT REAR 1 QUATTRO
-1 893 505 147 B TRACK CONTROL ARM
    F 85-H-901 001>> LEFT REAR 1 QUATTRO
-1 893 407 148 C TRACK CONTROL ARM
    F 85-D-900 001>> 85-H-901 000* RIGHT REAR 1
-1 893 505 148 B TRACK CONTROL ARM RIGHT REAR
    F 85-H-901 001>> 85-K-020 000 RIGHT REAR 1 QUATTRO
-1 893 505 148 B TRACK CONTROL ARM
    F 85-L-000 001>>* RIGHT REAR 1 QUATTRO
-1 859 511 513 A TRACK CONTROL ARM   2 SPORTQUATTRO
2 857 407 365 C BALL JOINT
    F >> 85-C-902 000 RIGHT REAR 1
-2 857 407 366 C BALL JOINT
    F >> 85-C-902 000 LEFT REAR 1
3 857 505 365 BALL JOINT
    F 85-D-900 001>>   2 QUATTRO
-3 859 505 365 A BALL JOINT   2 SPORTQUATTRO
4 857 505 403 B BRACKET LEFT REAR 1 QUATTRO
-4 857 505 404 B BRACKET RIGHT REAR 1 QUATTRO
- 859 505 403 A BRACKET   1 SPORTQUATTRO
5 857 407 175 LOCK PLATE   2
6 N 010 275 4 SCREW, HEXAGONAL HEAD M10X35
    F >> 85-C-902 000   4
7 N 011 527 11 WASHER A10,5X21X2 4
8 N 102 951 01 HEX. NUT, SELF-LOCKING M10 4 QUATTRO
-8 N 011 189 6 HEX. NUT, SELF-LOCKING M10X1 6
9 N 010 445 7 SCREW, HEXAGONAL HEAD M10X45X20
    F >> 85-C-902 000   2
10 N 102 951 01 HEX. NUT, SELF-LOCKING M10
    F >> 85-C-902 000   2
11 N 010 240 22 BOLT, HEXAGON HEAD M8X20MK
    SELF-LOCKING
    F 85-D-900 001>>   4
12 N 021 191 5 HEX. NUT, SELF-LOCKING M12X1,5
    F 85-D-900 001>>   2
- N 011 531 7 WASHER A13X24X2,5 2
13 811 407 181 BONDED RUBBER MOUNTING
    F >> 85-C-902 000   4
-13 857 407 181 BONDED RUBBER MOUNTING
    F 85-D-900 001>>   4
14 N 905 569 02 SCREW, HEXAGONAL HEAD M10X75 4
15 N 011 527 11 WASHER A10,5X21X2 4
16 N 102 951 01 HEX. NUT, SELF-LOCKING M10 4
17 857 407 272 A DRIVE SHAFT WITH CONSTANT LEFT REAR 1 QUATTRO
    VELOCITY JOINTS
-17 857 407 272 C DRIVE SHAFT WITH CONSTANT LEFT REAR 1 QUATTRO
    VELOCITY JOINTS
    FOR VEHICLES WITH ANTI-LOCKING
    BRAKE SYSTEM -ABS-
-17 859 501 272 DRIVE SHAFT WITH CONSTANT RIGHT REAR 1 SPORTQUATTRO
    VELOCITY JOINTS 650MM
    FOR VEHICLES WITH ANTI-LOCKING
    BRAKE SYSTEM -ABS-
-17 >857 407 271 A DRIVE SHAFT WITH CONSTANT RIGHT REAR 1 QUATTRO
    VELOCITY JOINTS
-17 ~857 407 271 AX DRIVE SHAFT WITH CONSTANT RIGHT REAR 1 QUATTRO
    VELOCITY JOINTS 108MM
-17 857 407 271 C DRIVE SHAFT WITH CONSTANT RIGHT REAR 1 QUATTRO
    VELOCITY JOINTS
    FOR VEHICLES WITH ANTI-LOCKING
    BRAKE SYSTEM -ABS-
-17 859 501 271 DRIVE SHAFT WITH CONSTANT LEFT REAR 1 SPORTQUATTRO
    VELOCITY JOINTS 615MM
    FOR VEHICLES WITH ANTI-LOCKING
    BRAKE SYSTEM -ABS-
20 *113 501 159 B CLIP 34 2
21 N 902 080 01 CLIP 103X9X1 2
22 *431 407 297 A LOCK RING   2
23 *803 407 292 RETAINING CLIP 70 2
27 443 407 309 A SEALING WASHER 94MM 2
28 *431 407 298 A LOCK RING
    F >> 85-E-900 700* INNER 2
-28 *N 012 374 1 LOCK RING 28X1,5
    F 85-E-900 701>>*   2
29 *N 900 972 02 BOLT, WITH POLYGON SOCKET BM10X48X26 12 QUATTRO
    HD.
-29 N 902 804 01 12 POINT SOCKET HEAD SCREW M10X55 12 SPORTQUATTRO
30 431 407 357 B PLATE
    F >> 85-K-000 068   6
-30 443 407 357 PLATE
    F 85-K-000 069>>   6
31 443 498 625 WHEEL BEARING WITH MOUNTING 75,07MM 2 QUATTRO
    PARTS
-31 443 498 625 E WHEEL BEARING WITH MOUNTING 82MM 2
    PARTS
32 *N 012 298 1 LOCK RING 75X2,5 4
33 857 501 653 WHEEL HUB   2 QUATTRO
-33 859 407 613 WHEEL HUB   2 SPORTQUATTRO
34 803 407 277 A WASHER   2
35 *803 407 643 A LOCK NUT M22X1,5 2
36 G 000 633 HIGH TEMPERATURE GREASE 120G 1
37 *431 498 203 D JOINT PROTECTIVE BOOT WITH OUTER 2
    ASSEMBLY ITEMS AND GREASE
-37 443 498 203 A JOINT PROTECTIVE BOOT WITH OUTER 2
    ASSEMBLY ITEMS AND GREASE
    FOR VEHICLES WITH ANTI-LOCKING
    BRAKE SYSTEM -ABS-
38 183 498 099 A WHEEL SHAFT OUTER WITH JOINT   2
    AND ATTACHMENT PARTS
-38 ~443 498 099 AX WHEEL SHAFT, OUTER WITH JOINT,   2
    ROTOR AND ASSEMBLY PARTS
    FOR VEHICLES WITH ANTI-LOCKING
    BRAKE SYSTEM -ABS-
39 *443 498 201 B JOINT PROTECTIVE BOOT WITH INNER 2
    ASSEMBLY ITEMS AND GREASE
40 431 498 103 C CONSTANT VELOCITY JOINT WITH INNER 2
    BOOT, ATTACHMENT PARTS AND
    GREASE
- 859 505 683 RADIUS ROD   2 SPORTQUATTRO
- N 102 779 03 SCREW, HEXAGONAL HEAD M10X50 4 SPORTQUATTRO
- N 102 951 01 HEX. NUT, SELF-LOCKING M10 4 SPORTQUATTRO
- 859 407 199 ADJUSTING PIECE   2 SPORTQUATTRO
- 859 407 185 C BUSH   2 SPORTQUATTRO
- 331 407 196 PLUG   2
